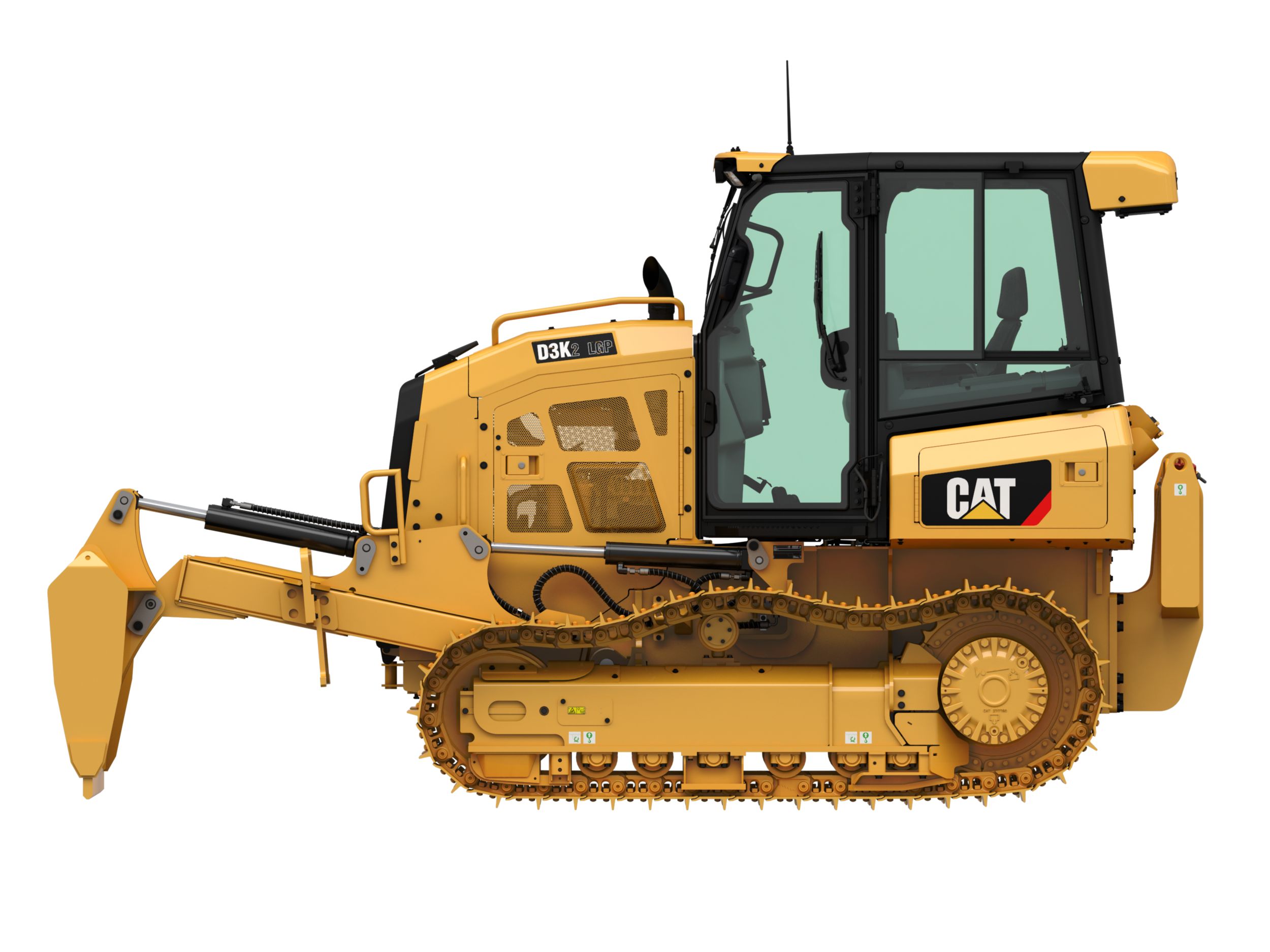

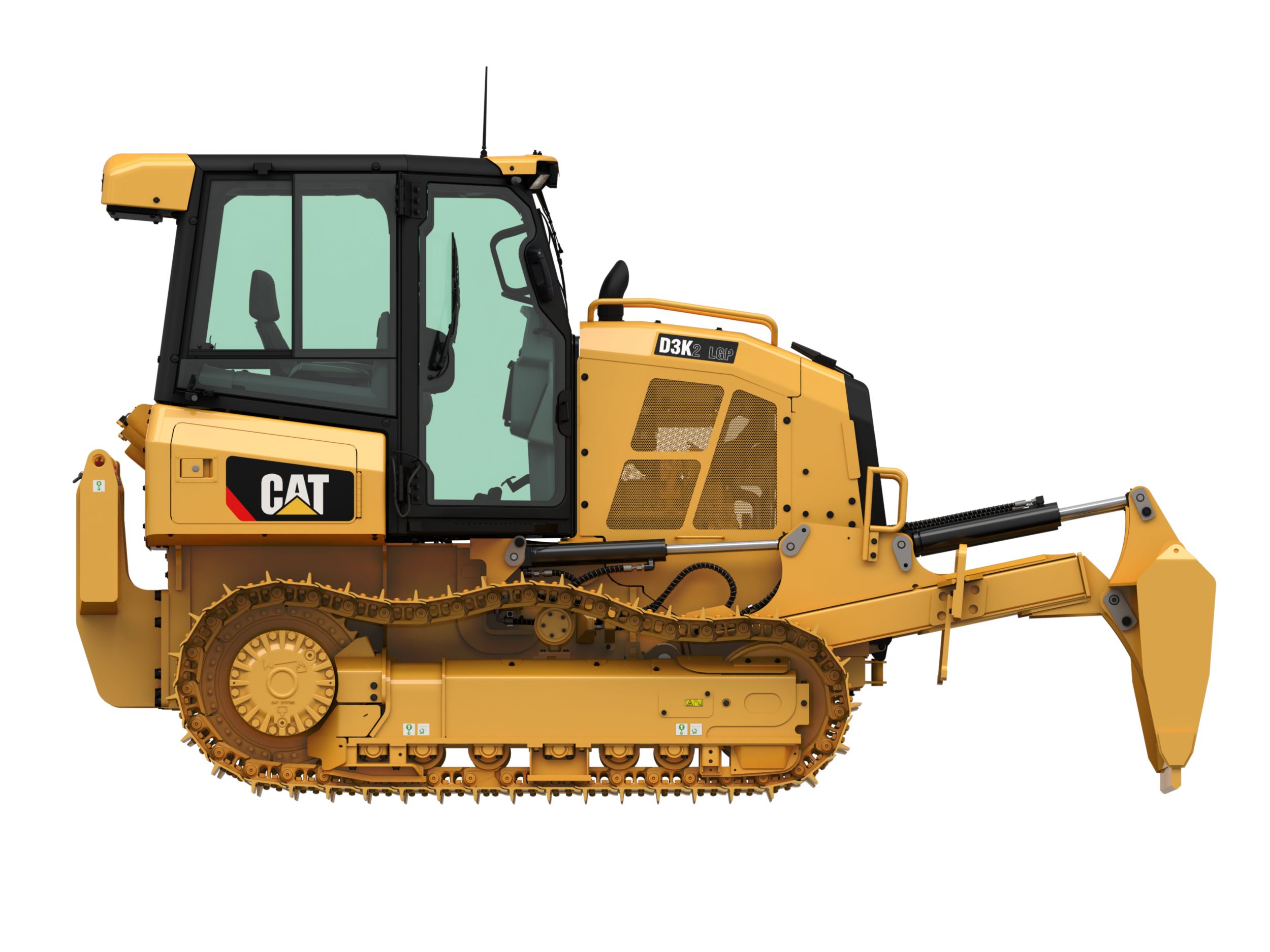

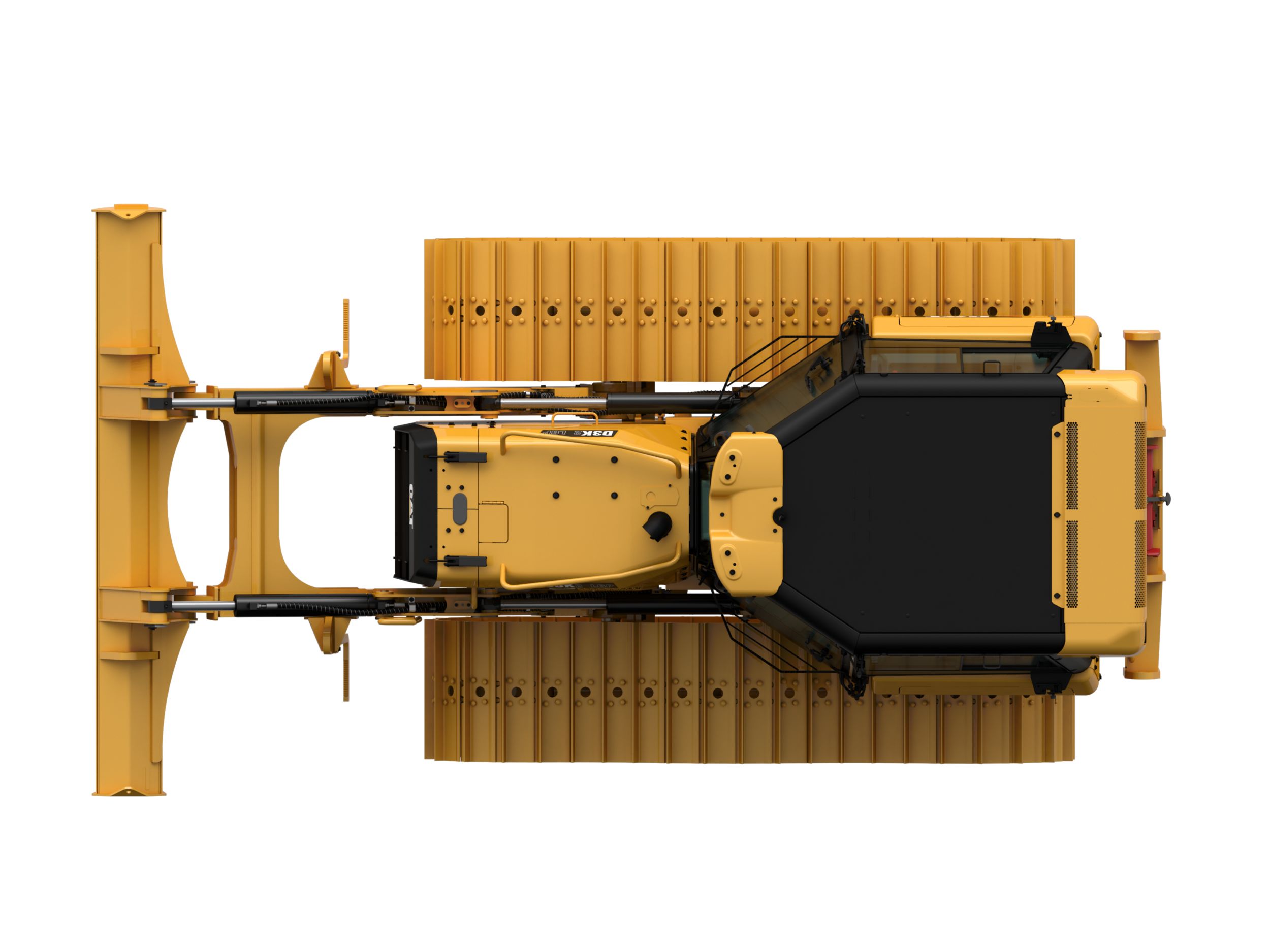

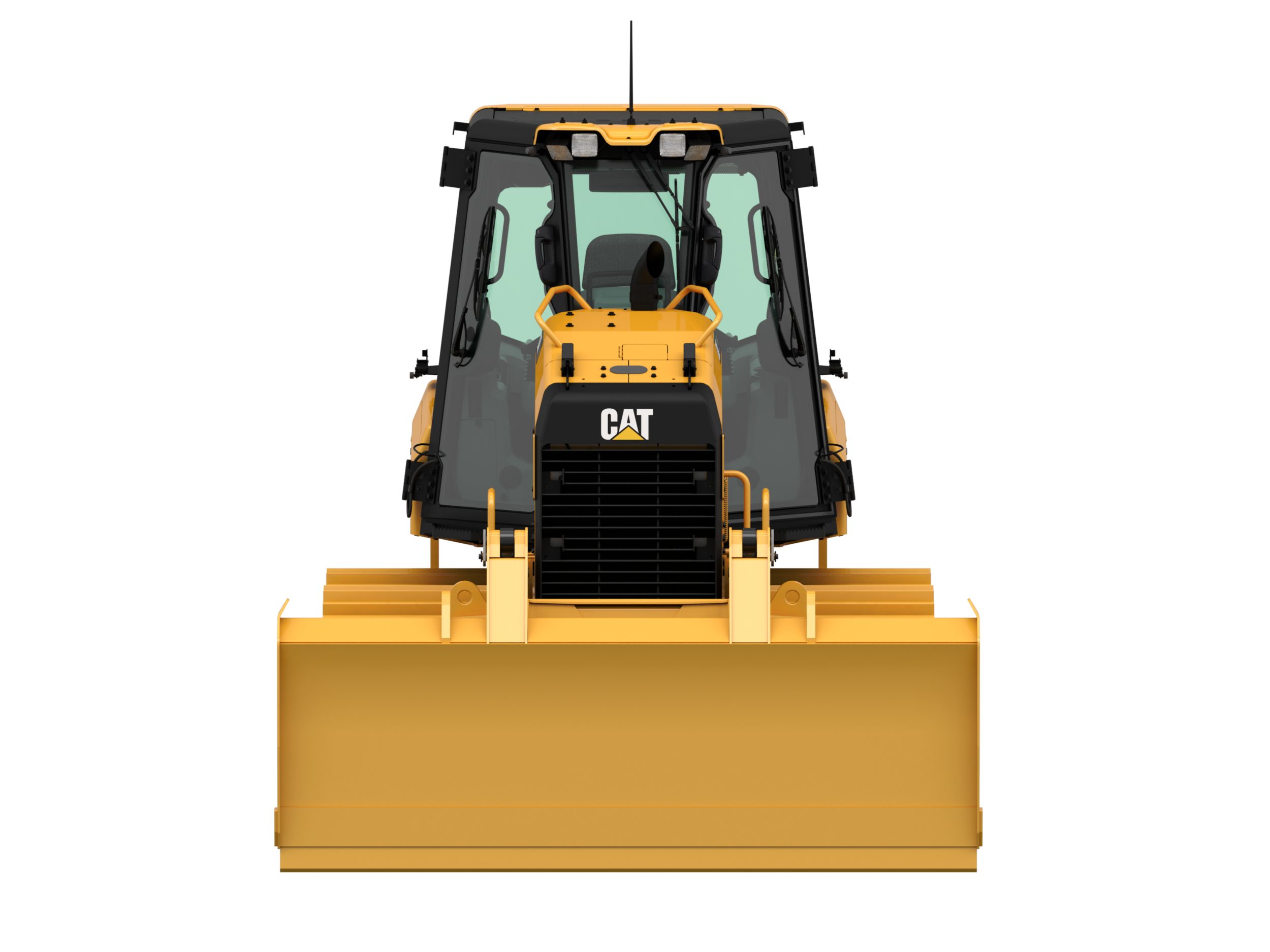

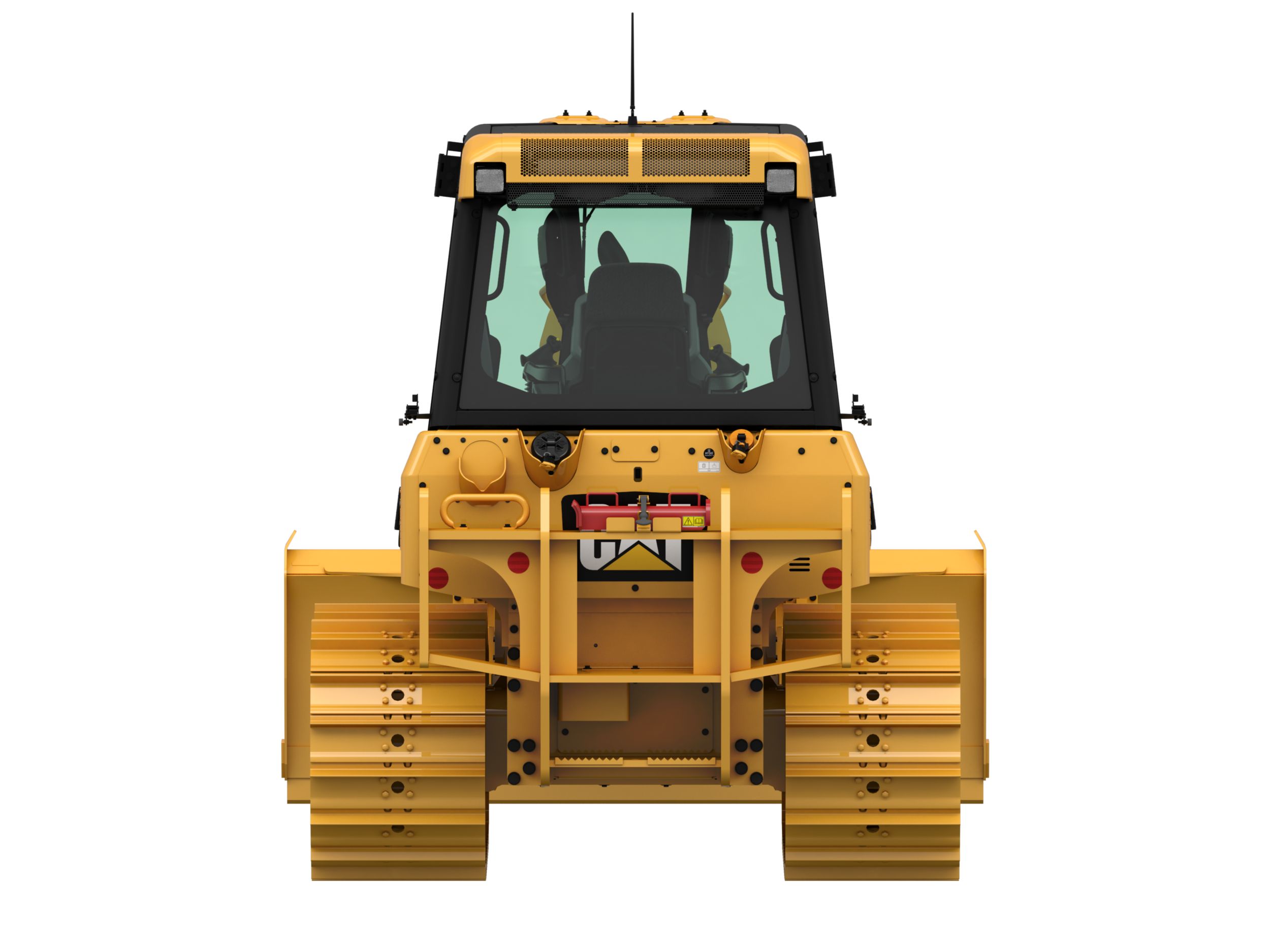

D3K2 Shiphold / Port Handling
KEY SPECS
- Engine Model Cat C4.4
- Power - Net 55.2kW
- Maximum Travel Speed - Reverse 10km/h
OVERVIEW
FEATURES AT A GLANCE
Blade
- Two Way Dozer designed for use in shiphold to move various bulkmaterial Inside mounted c-frame provides lift height suitable for pulling material off ship walls
- Blade pitches hydraulically forward or rearward for versatile operation

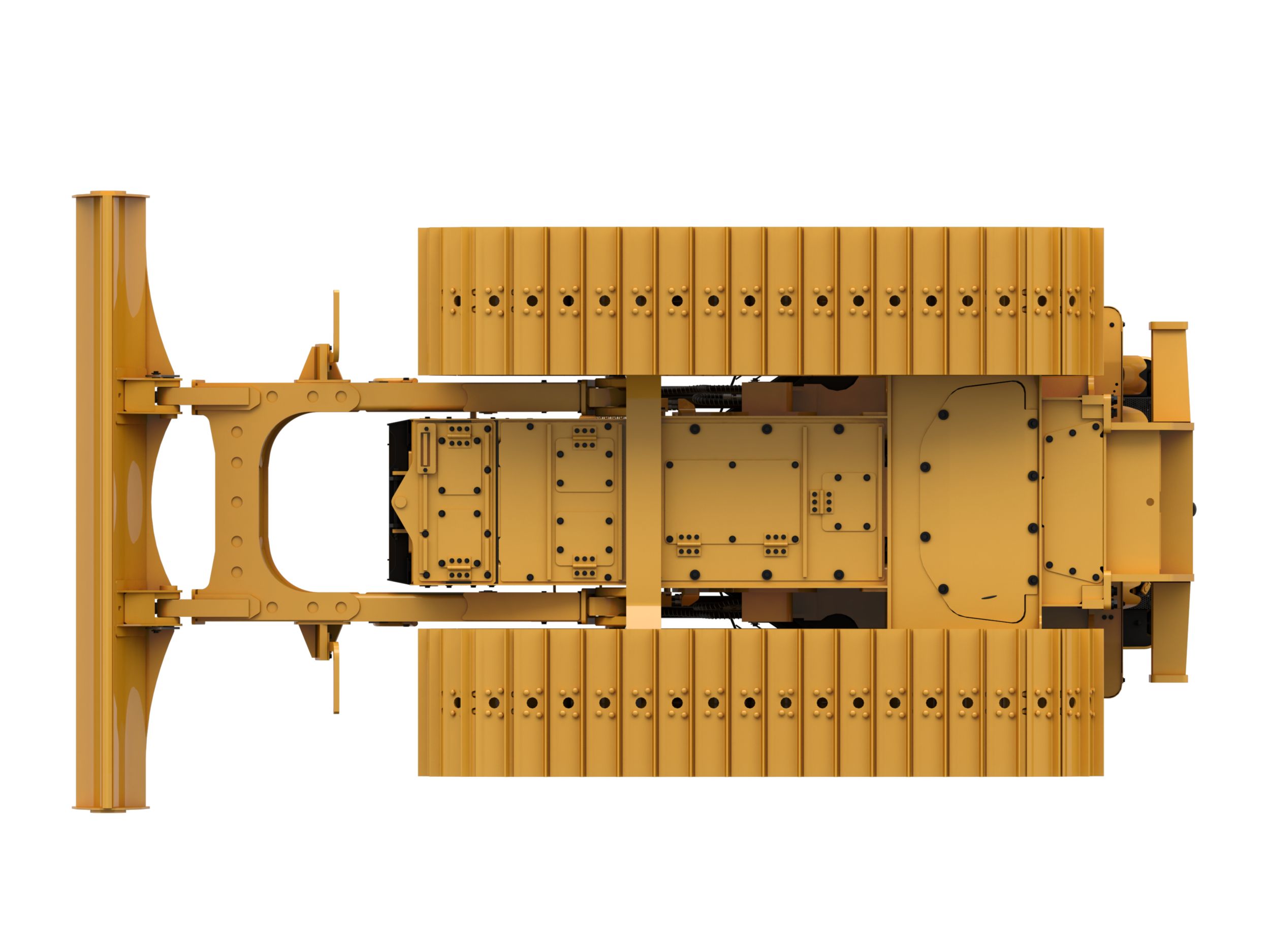

Undercarriage
- XL configuration – ideal for most material
-LGP configuration – available for material requiring additional machine floatation
-Sealed and Lubricated Track (SALT)
-Slotted track shoes (optional) – reduces material packing
All Day Comfort
- Spacious cab with generous leg room
-Standard air conditioning with cab option
- Fully adjustable air suspension seat
-Seat mounted joystick controls
Productivity
- Exceptional maneuverability
-Fast cycle times – quicker ship loading and unloading
SPECIFICATIONS
- Engine Model Cat C4.4
- Power - Net 55.2kW
- Maximum Travel Speed - Reverse 10km/h
- Maximum Travel Speed - Forward 9km/h
- Operating Weight - XL 8516kg
- Note *Includes dozer blade, cab EROPS, operator and fuel.
- Blade Width 2400mm
- Blade Tilt - Rear 30°
- Blade Tilt - Front 38°
- Operating Weight* 8516kg
- Blade Capacity 1.58m³
- Tractor Height 2763mm
- Overall Length - With Blade 4830mm
- Width of Tractor - Without Blade 1900mm
- Blade Height 875mm
- Blade Lift Height 1580mm
- Track Gauge 1495mm
- Shoe Width - Standard 405mm
- Digging Depth 588mm
