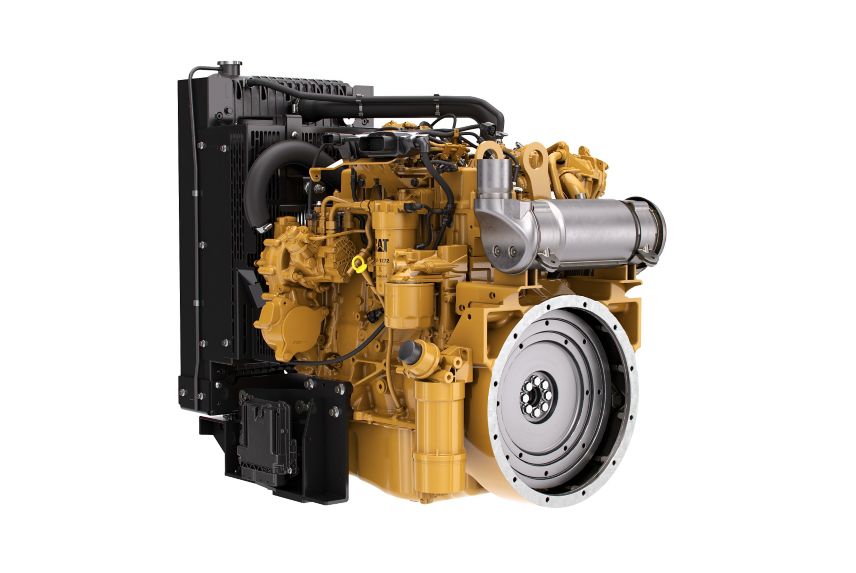

C3.4B, Less than 56 kW (75 hp)

SPECIFICATIONS

EQUIPMENT

360° INTERACTIVE

RELATED PRODUCTS

C3.4B, Less than 56 kW (75 hp)

industrial

Compression Ratio 17:1
Aspiration Turbocharged
Bore 99 mm (3.9 in)

Get a quote

OVERVIEW

SPECIFICATIONS

Compression Ratio 17:1
Aspiration Turbocharged
Bore 99 mm (3.9 in)
Displacement 3.4 L (207.5 in³)
Stroke 110 mm (4.3 in)
Length 509 mm (20 in)
Width 705 mm (27.7 in)
Height 957 mm (37.6 in)
Emissions Meets U.S. EPA Tier 4 Final, EU Stage IIIB nonroad standards
Rotation From Flywheel End Counterclockwise
Rated Speed 2200
Weight 509 mm (20 in)
Minimum Power 55.4 bkW74 BHP
Maximum Power 55.4 bkW74 BHP
Engine Configuration In-Line 4, 4-Stroke-Cycle Diesel
Diameter 149 mm (5.8 in)
Weight Approximate Net Dry Standard Configuration Without Oil Cooling Clutch Compressor A C 359 kg (791.5 lb)
Industry industrial

EQUIPMENT

C3.4B, Less than 56 kW (75 hp) Standard Equipment

Air Inlet System
- Standard air cleaners

Control System
- Full electronic control system
- Fully integrated, engine-mounted electronic control unit
- Waterproof connectors and wiring looms
- Flexible and configurable software features and J1939 standard communications I/O

Flywheels and Flywheel Housing
- SAE3 configuration

Fuel System
- Engine-mounted fuel filters
- Electronic high pressure common rail fuel pump and injectors

Lube System
- Lubricating oil filters and breathers

General
- Cold start capability to -20° C (-4° F)
- Paint: Caterpillar yellow, with optional colors available at request

U.S. EPA Tier 4 Final, EU Stage IIIB Aftertreatment/Clean Emissions Control Equipment
- Through Flow Diesel Particulate Filter (DPF)
- Diesel Oxidation Catalyst (DOC)
- Flex pipe connection kit with straight and 90° options for flexibility
