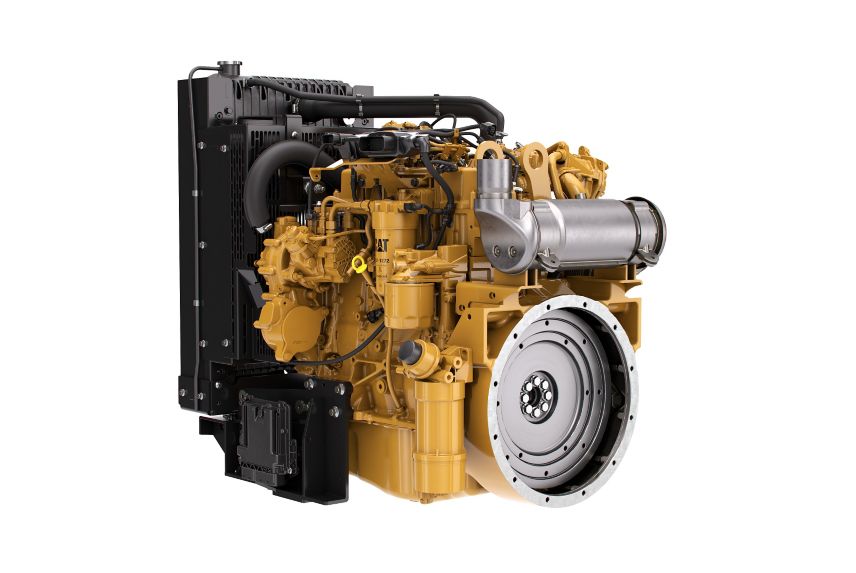

C3.4B, Greater than 56 kW (75 hp)

industrial

Compression Ratio 17:1
Aspiration Turbocharged Aftercooled (TA)
Bore 99 mm (3.9 in)

Get a quote

OVERVIEW

SPECIFICATIONS

Compression Ratio 17:1
Aspiration Turbocharged Aftercooled (TA)
Bore 99 mm (3.9 in)
Displacement 3.4 L (207.5 in³)
Stroke 110 mm (4.3 in)
Length 1252 mm (49.3 in)
Width 705 mm (27.7 in)
Height 1033 mm (40.7 in)
Emissions U.S. EPA Tier 4 Final, EU Stage IV nonroad emission standards. U.S. EPA Tier 4 Interim Equivalent or EU Stage IIIB Equivalent ratings also available using EPA or EU Flex Provisions.
Rotation From Flywheel End Counterclockwise
Rated Speed 2200
Minimum Power 74.5 bkW100 BHP
Maximum Power 86 bkW115 BHP
Engine Configuration In-Line 4, 4-Stroke-Cycle Diesel
Doc Diameter 196 mm (7.7 in)
Doc Length 320 mm (12.6 in)
Doc Weight 15 kg (33 lb)
Scr Diameter 251 mm (9.88 in)
Scr Weight 20 kg (44 lb)
Weight Approximate Net Dry Standard Configuration Without Oil Cooling Clutch Compressor A C 407 kg (897 lb)
Src Length 520 mm (20.47 in)
Industry industrial

EQUIPMENT

C3.4B, Greater than 56 kW (75 hp) Standard Equipment

Air Inlet System
- Standard air cleaners

Control System
- Full electronic control system
- Fully integrated, engine-mounted electronic control unit
- Waterproof connectors and wiring looms
- Flexible and configurable software features and J1939 standard communications I/O

Flywheels and Flywheel Housing
- SAE3 configuration

Fuel System
- Engine-mounted fuel filters
- Electronic high pressure common rail fuel pump and injectors

Lube System
- Lubricating oil filters and breathers

General
- Cold start capability to -20° C (-4° F)
- Paint: Caterpillar yellow, with optional colors available at request

U.S. EPA Tier 4 Final, EU Stage IV Aftertreatment/Clean Emissions Control Equipment
- Diesel Oxidation Catalyst (DOC)
- Selective Catalytic Reduction (SCR)
- SCR Auxiliaries are available in a range of tanks and heated lines
