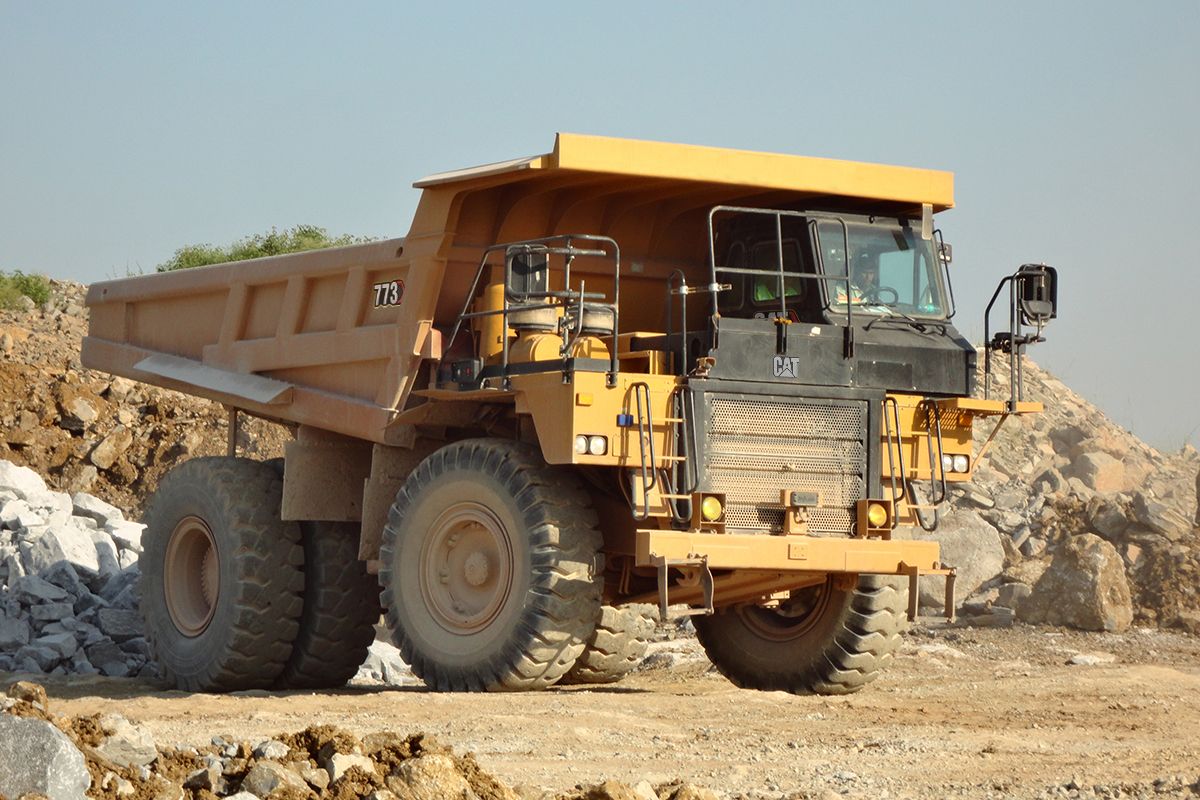

Cat 773 (05) Off-highway truck

Equipment / NEW / Off-Highway Trucks / Off-Highway Trucks / 773 (05)

METRIC

773 (05)

OVERVIEW

BENEFITS

FEATURES AT A GLANCE

SPECIFICATIONS

TOOLS AND EXPERT HELP

PRODUCT BROCHURES AND DOWNLOADS

MEDIA GALLERY

KEY SPECS

Engine Model Cat® 3412E
Rated Engine Speed 2000r/min2000r/min
Gross Power - SAE J1995 567kW760HP

Get a quote

FIND A DEALER

OVERVIEW

BENEFITS

FEATURES AT A GLANCE

ACHIEVE GREATER PRODUCTIVITY

Productivity improvement up to 7%.
Up to 3% increase in torque puts more power to the ground.
Various body options, along with liners and sideboard combinations, offer flexibility to move a wide density of material without compromising on payload.
Machine speed limit feature allows the machine to run at an optimal gear for the selected speed.

BOOST FUEL EFFICIENCY

Standard economy mode provides maximum fuel savings with minimal productivity impact.
Haul your truck at a more fuel-efficient engine speed and gear selection with speed limiting.
Engine Idle Shutdown automatically initiates when the truck is in park and idles for a preset amount of time—conserving fuel.
Built with the same reliable Cat® 3412E air-to-air aftercooled engine, featuring Hydraulic Electronic Unit Injector (HEUI™) forcefficient operation.
Deliver reliable performance in the most extreme haul-road conditions with the Cat front dry caliper and rear oil-cooled multiple disc brakes.

DESIGNED FOR SAFETY

Ground level access to the machine shutoff switch stops all fuel to the engine when activated, shutting down the machine.
Safe ground level access to daily maintenance points means less servicing time is required.
Overload speed limiter works with truck payload system to reduce machine speed automatically when the truck is overloaded.

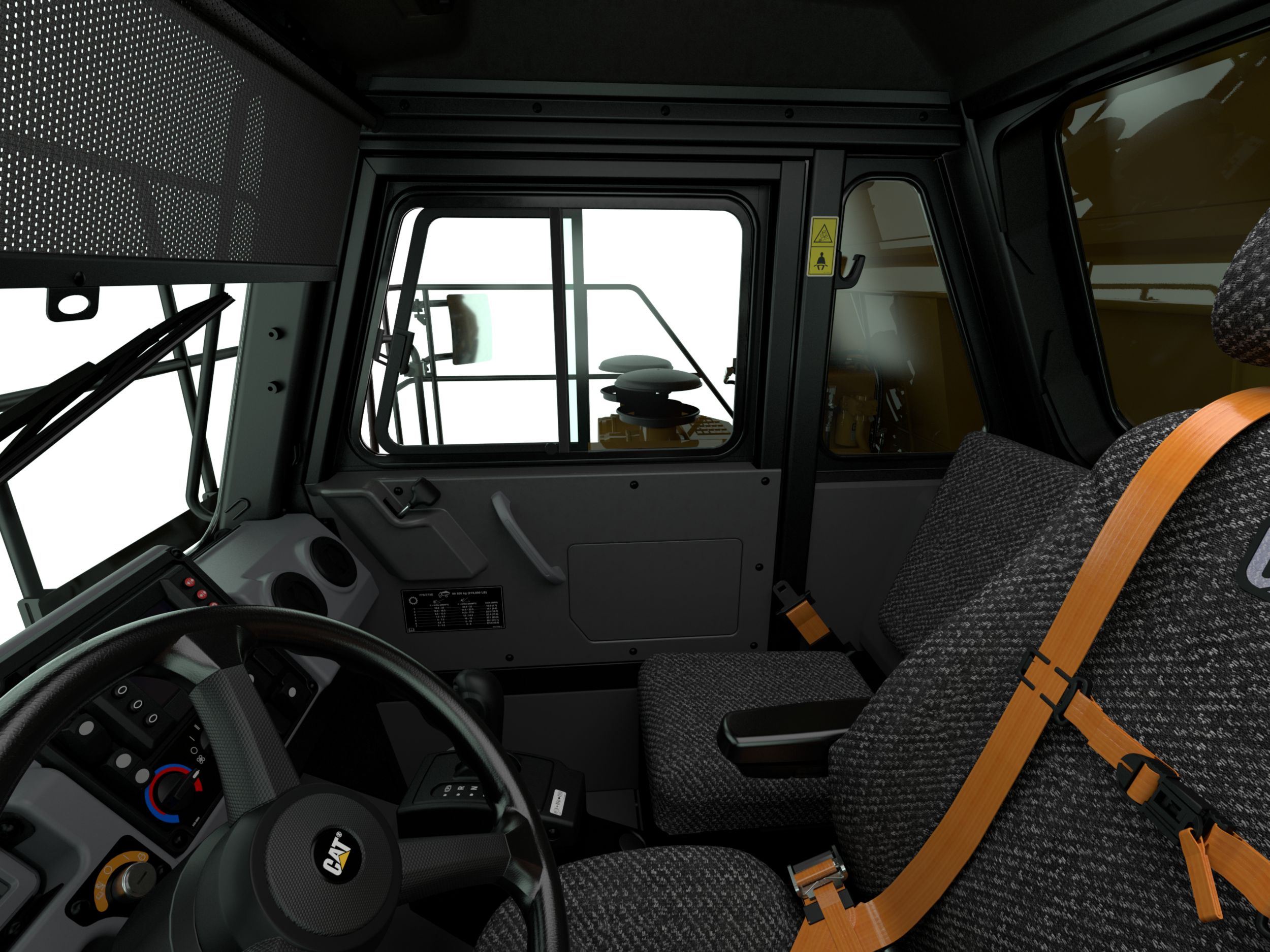

Equipped with a retractable four-point seat belt and a shoulder harness to improve operator safety.
Seat belt indicator implements both visual and audible alerts to the operator when seat belt is not fastened.
Secondary steering automatically engages if the power source for the normal steering fails.
Save on fuel costs with Engine Overspeed Protection— electronically senses the engine condition and automatically upshifts one gear to prevent engine overspeed.

EASY TO OPERATE

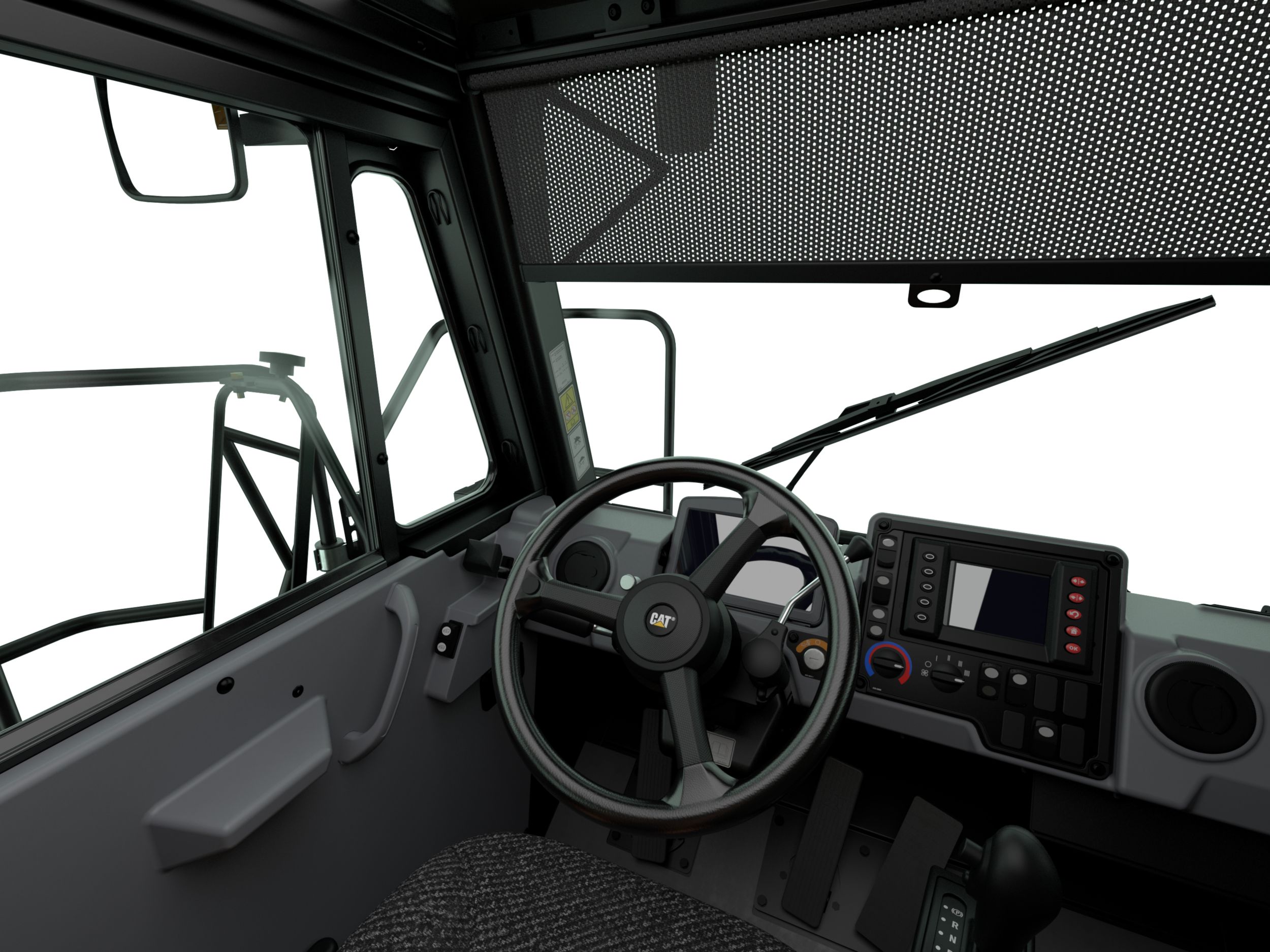

Completely redesigned cab interior for a whole new standard in visibility, comfort, and productivity.
Enjoy a more automotive-like, all-in-one integrated parking brake.
Intuitive, ergonomic controls and multifunction display keep operators focused on their work.
Designed for precise steering, Cat integrated steering and suspension system provides excellent maneuverability, minimal tire wear, and superior ride control.

INTEGRATED CAT TECHNOLOGIES

Second gear reweigh improves accuracy of the haul as it recalculates the payload.
Instrumentation and Advisor system provide a three-category warning system and quick access to stored diagnostic data.
Product Link™ system connects to each machine wirelessly, allowing you to monitor location, hours, fuel use, productivity, idle time, and diagnostic codes.
Vital Information Management System (VIMS™ ) – User-friendly interface monitor is available in the cabin to monitor key parameters of the machine.
Truck Production Management System (TPMS) provides accurate weighing of the materials, stores 2,400 payload cycles, and reports on weights, haul cycle times, and distances with date and time stamps (optional attachment).

INCREASED PERFORMANCE AND RELIABILITY

Build operator confidence with Automatic Retarder Control (ARC), providing excellent control while reducing operator effort for a smoother ride.
Enjoy better productivity with a more responsive Traction Control System, improves control in poor underfoot conditions.
Standard wet disc braking on rear wheels offers extra protection and enhanced safety.
Prevent any slippage with an integrated park brake for slope holding capability.

LOWER MAINTENANCE COSTS

Safe, convenient maintenance with a machine platform and groundlevel battery disconnect.
The Advisor system provides quick, onboard diagnostic data and lowers operating costs.
Rugged cylinders use a large diameter bore and a low-pressure nitrogen/oil design for long life with minimal maintenance.
Traction Control System (TCS) engages sooner in the slip, extending tire life and cycle times.

SPECIFICATIONS

Engine Model Cat® 3412E
Rated Engine Speed 2000r/min2000r/min
Gross Power - SAE J1995 567kW760HP
Net Power - SAE J1349 537kW720HP
Number of Cylinders 12
Torque Rise 33%33%
Bore 137mm5.4in
Stroke 152mm6in
Displacement 27l1649in³
Note (1) These engine ratings apply at 2,000 rpm when tested under the specified condition for the specified standard in effect at the time of manufacture.
Note (2) Power rating conditions based on standard conditions of 25° C (77° F) and99 kPa (29.32 in Hg) dry barometer, using 35° C (95° F) API gravity fuel havingan LHV of 42 780 kJ/kg (18,390 Btu/lb) when used at 30° C (86° F) [referencea fuel density of 838.9 g/L (7.001 lb/gal)].
Note (3) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator.
Note (4) No engine derating required up to 3048 m (10,000 ft).
Note (5) Meets China Nonroad Stage III emission standards equivalent to Tier 2.
Target Gross Machine Operating Weight 99300kg218920lb
Operating Weight - Empty 40192kg88608lb
Operating Weight - Loaded 59108kg130311lb
Note (1) Does not include Liner.
Note (2) Empty operating weight may vary based on the machine configuration. Refer to Off-Highway Truck Payload Policy.
Nominal Payload Class (100%) 59.1t65.2ton (US)
Top Speed - Loaded 67.8km/h42.1mile/h
Forward - 1 10.8km/h6.7mile/h
Forward - 2 15.1km/h9.3mile/h
Forward - 3 20.4km/h12.7mile/h
Forward - 4 27.4km/h17mile/h
Forward - 5 37km/h23mile/h
Forward - 6 50km/h31mile/h
Forward - 7 67.8km/h42.1mile/h
Reverse 13.1km/h8.1mile/h
Note Maximum travel speeds with standard 24.00R35 (E4) tires.
Differential Ratio 3.64:1
Planetary Ratio 4.8:1
Total Reduction Ratio 17.48:1
Brake Surface - Front 1395cm²216in²
Brake Surface - Rear 61269cm²9496in²
Brake Standards ISO 3450: 2011
Pump Flow - High Idle 562l/min148gal/min
Relief Valve Setting - Raise 17225kPa2500psi
Relief Valve Setting - Lower 3445kPa500psi
Body Raise Time - High Idle 9.5s9.5s
Body Lower Time - Float 12.5s12.5s
Note (1) Twin, two-stage hydraulic cylinders mounted outside the main frame; double acting cylinders in second stage.
Note (2) Power raise in both stages and power down in second stage.
Struck 26.6m³34.8yd³
Heaped 2:1 (SAE) 35.2m³46yd³
Note (1) ISO 6483:1980
Note (2) Contact your local Cat dealer for body recommendation.
ROPS Standards (1) Rollover Protective Structure (ROPS) for cab offered by Caterpillar meets ISO 3471:2008 for operator and ISO 13459:2012 for trainer.
FOPS Standards Falling Objects Protective Structure (FOPS) meets ISO 3449:2005 Level II FOPS criteria for operator and ISO 13459:2012 Level II criteria for trainer.
Note (1) The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.4 kg (5.29 Ibs) of refrigerant, which has a CO2 equivalent of 3.43 metric tonnes (3.78 tons).
Front Axle - Empty 46.6%46.6%
Front Axle - Loaded 33.8%33.8%
Rear Axle - Empty 53.4%53.4%
Rear Axle - Loaded 66.2%66.2%
Effective Cylinder Stroke - Front 234mm5.2in
Effective Cylinder Stroke - Rear 149mm5.9in
Rear axle - Oscillation 8.1°8.1°
Chassis 30219kg66622lb
Gross Vehicle 99300kg218920lb
Fuel Tank 700l185gal (US)
Cooling System 122l32gal (US)
Differential - Final Drives 155l41gal (US)
Steering Tank 34l9gal (US)
Steering System - Including Tank 60l16gal (US)
Torque Converter - Brake - Hoist Hydraulic Tank 133l35gal (US)
Brake Hoist System - Includes Tank 307l81gal (US)
Torque Converter - Transmission System - Including Sump 72l19gal (US)
Torque Converter - Transmission System 53l14gal (US)
Crankcase 68l18gal (US)
Standard Tire 24.00-R35 (E4)
Note (1) Productive capabilities of the 773 truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production.
Note (2) Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection.
Sound Standards ISO 6393:2008, SAE J1166:2008
Note (1) For cab offered by Caterpillar, the operator sound exposure Leq (Equivalent Sound Pressure Level) is 80 dB(A) when measured according to work cycle procedures specified in SAE J1166:2008. This occurs when the cab is properly installed and maintained. The test was conducted with doors and windows closed.
Note (2) Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment.
Turning Diameter - Front 22m72.18ft
Steering Standards Steering Standards Meets ISO 5010:2007
Steer Angle 31°31°
Turning Circle - Clearance Diameter 25m82ft
Height - Top of ROPS 4000mm13.12ft
Overall Body Length 8535mm28ft
Inside Body Length 6400mm21ft
Overall Length 9120mm31.5ft
Wheel Base 4191mm13.75ft
Rear Axle - Tail 2782mm9.13ft
Ground Clearance 566mm1.86ft
Dump Clearance 676mm2.22ft
Loading Height - Empty 3773mm12.38ft
Inside Body Depth - Maximum 1805mm5.92ft
Overall Height - Body Raised 8787mm28.83ft
Operating Width 5076mm16.8ft
Centerline Front Tire Width 3275mm10.74ft
Engine Guard Clearance 667mm2.2ft
Overall Canopy Width 4393mm14.41ft
Outside Body Width 3910mm12.8ft
Inside Body Width 3658mm12ft
Front Canopy Height 4393mm14.41ft
Rear Axle - Clearance 591mm1.94ft
Centerline of Rear Dual Tire Width 2927mm9.6ft
Overall Tire Width 4457mm14.62ft
