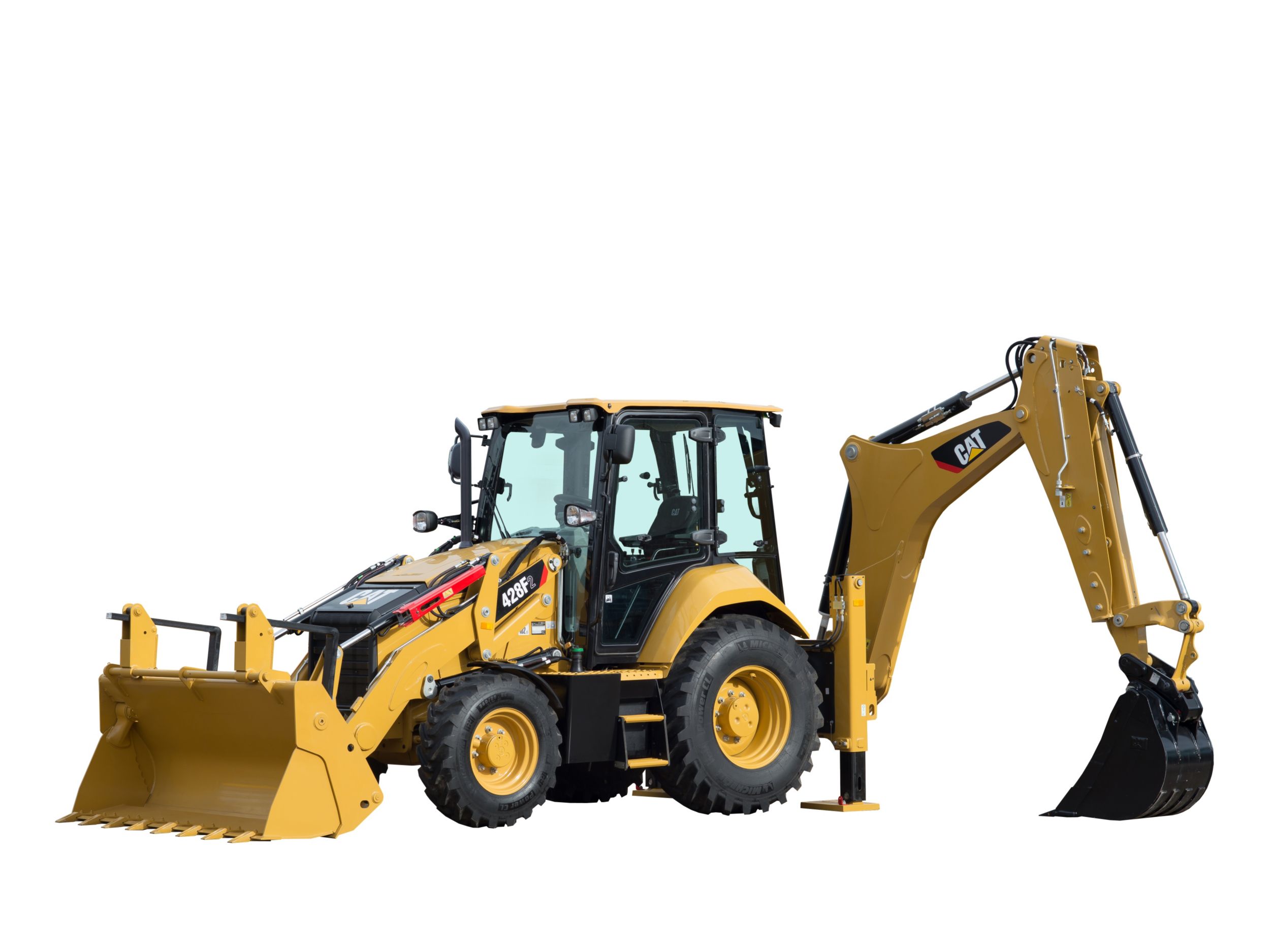

426F2
KEY SPECS
- Power - Net 66kW
- Operating Weight - Nominal 7990kg
- Operating Weight - Maximum 8760kg
OVERVIEW
FEATURES AT A GLANCE
Product Link™
Get the most out of your Cat® Backhoe Loader. Product Link provides quick access to vital information such as machine location, hours worked, machine error codes and fuel burn to help you maximize machine performance.
Cab and Controls
The introduction of the new cab to the Cat Backhoe Loader provides a comfortable and easy to use operator environment. With the ability to customize your experience, the all new cab allows the operator to perform in greater comfort and enjoy the latest technologies available on today's generation of backhoe loaders.
Powerful Hydraulics
The F2 Series machines really make an impact. High pump flow in a superior hydraulic system allow the operator excellent hydraulic performance at their fingertips.
Power Train
The 426F2 is equipped with our tried and tested Cat 3054C engine and is finely tuned to a Cat four speed manual transmission. This fine tuning enables the 426F2 to reach a 40 km/h roading speed.
SPECIFICATIONS
- Power - Net 66kW
- Operating Weight - Nominal 7990kg
- Operating Weight - Maximum 8760kg
- Model Cat 3054C Mechanical Turbo
- Emissions Engine meets U.S. EPA Tier 2/EU Stage II equivalent emission standards.
- Rated Power (Standard) - 2,200 rpm - Gross - ISO 14396 68.5kW
- Net Power - 2,200 rpm - ISO 9249 66kW
- Net Peak Power - 2,000 rpm - SAE J1349 65kW
- Net Peak Power - 2,000 rpm - ISO 9249 65kW
- Net Peak Power - 2,000 rpm - EEC 80/1269 65kW
- Torque Rise - 1,200 rpm - Net 38%
- Maximum Torque - 1,400 rpm 394N·m
- Bore 105mm
- Stroke 127mm
- Displacement 4.4l
- Note (1) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
- Note (2) No derating required up to 2286 m altitude. Auto derate protects hydraulic and transmission systems.
- Type Closed Center
- Pump Type Variable Flow, Axial Piston
- Maximum Pump Capacity 132l/min
- System Pressure - Backhoe 250bar
- System Pressure - Loader 250bar
- Inside Cab 80dB(A)
- Outside Cab 104dB(A)
- Note Travel speeds of Two Wheel Drive backhoe loader at full throttle, when equipped with 16.9×28 rear tires.
- Power Shuttle Transmission - Forward 1st 5.5km/h
- Power Shuttle Transmission - Forward 2nd 9km/h
- Power Shuttle Transmission - Forward 3rd 20.7km/h
- Power Shuttle Transmission - Forward 4th 40km/h
- Power Shuttle Transmission - Reverse 1st 5.5km/h
- Power Shuttle Transmission - Reverse 2nd 9km/h
- Power Shuttle Transmission - Reverse 3rd 20.7km/h
- Power Shuttle Transmission - Reverse 4th 40km/h
- Cooling System 22l
- Fuel Tank 160l
- Engine Oil - With Filter 8.8l
- Transmission - Power Shuttle - AWD 15l
- Rear Axle 14.5l
- Rear Axle - Planetaries 1.5l
- Front Axle (AWD) 11l
- Front Axle (AWD) - Planetaries 0.7l
- Hydraulic System 106l
- Hydraulic Tank 40l
- Operating Weight - Estimated 7990kg
- Operating Weight - ROPS Capacity - Maximum 8760kg
- Counterweights - Base 115kg
- Counterweights - Medium 240kg
- Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - GP 115kg
- Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - MP 0kg
- Note *Machine Configuration – standard engine, standard stick hoe, standard cab with A/C, AWD standard shift transmission, 0.96 m³ MP loader bucket, 610 mm standard duty hoe bucket, 12.5/80-18 and 16.9-28 tires, no counterweight, 80 kg operator and full fuel tank.
- Features (1) Heavy-duty rear axle with self adjusting inboard brakes, differential lock and final drives.
- Features (2) AWD is engaged by front console panel switch or by brake pedal during all-wheel-braking operation. AWD can be engaged on the move, under load, in any gear, forward or reverse. AWD has outer final drives for easy maintenance.
- Features (3) AWD front axle is pendulum mounted and permanently sealed and lubricated, requiring no daily maintenance. Also features double-acting steering cylinder with 52° steering angle for increased maneuverability.
- Front Axle (AWD) - Static 22943kg
- Front Axle (AWD) - Dynamic 9177kg
- Rear Axle - Static 19120kg
- Rear Axle - Dynamic 7648kg
- Type Front Wheel
- Power Steering Hydrostatic
- AWD Cylinder, One (1) Double Acting - Bore 65mm
- AWD Cylinder, One (1) Double Acting - Stroke 120mm
- AWD Cylinder, One (1) Double Acting - Rod Diameter 36mm
- Turning Circle (inner wheel not braked) - Outside Front Wheels 8.18m
- Turning Circle (inner wheel not braked) - Outside Widest Loader Bucket 10.97m
- Type Fully enclosed boosted, hydraulic, multiple discs.
- Features (1) Inboard oil-immersed, hydraulically actuated multiple Kevlar discs on final drive input shaft.
- Features (2) Completely enclosed and sealed.
- Features (3) Self-adjusting.
- Features (4) Dual foot-operated boosted brake pedals can be interlocked for roading.
- Features (5) Parking/secondary brakes are independent of the service brake system. Parking brake is mechanically applied through a hand lever located in the right side console.
- Features (6) Meets ISO 3450:1996 requirements.
- Overall Length - In Roading Position 5726mm
- Overall Transportation Length 5678mm
- Overall Transportation Height - 4.3 m 3757mm
- Overall Width - Excluding Loader Bucket 2346mm
- Height - Top of Cab/Canopy 2869mm
- Height - Top of Exhaust Stack 2716mm
- Rear Axle - Centerline to Front Grill 2708mm
- Wheelbase - AWD 2200mm
- Note Dimensions and performance specifications shown are for machines equipped with 12.5/80-18 SGL front tires, 16.9-28c rear tires, standard cab, standard stick with 610 mm standard duty bucket, and 1.05 m³ GP loader bucket and standard equipment unless otherwise specified.
- Overall Length - In Roading Position 5682mm
- Overall Transportation Length 5675mm
- Overall Transportation Height - 4.3 m 3757mm
- Overall Width - Excluding Loader Bucket 2346mm
- Height - Top of Cab/Canopy 2869mm
- Height - Top of Exhaust Stack 2716mm
- Rear Axle - Centerline to Front Grill 2708mm
- Wheelbase - AWD 2200mm
- Note Dimensions and performance specifications shown are for machines equipped with 12.5/80-18 SGL front tires, 16.9-28c rear tires, standard cab, standard stick with 610 mm standard duty bucket, and 1.05 m³ GP loader bucket and standard equipment unless otherwise specified.
- Capacity 1.05m³
- Width 2262mm
- Lift Capacity at Maximum Height 3610kg
- Lift Breakout Force 54.46kN
- Tilt Breakout Force 53.92kN
- Tipping Load - Breakout Point 7012kg
- Maximum Hinge Pin Height 3447mm
- Dump Angle at Full Height 46°
- Dump Height at Maximum Angle 2733mm
- Dump Reach at Maximum Angle 900mm
- Maximum Bucket Rollback at Ground Level 38°
- Digging Depth 88mm
- Maximum Grading Angle 113°
- Grill to Bucket Cutting Edge, Carry Position 1482mm
- Maximum Operating Height 4368mm
- Bucket Weight - Excluding Teeth and Forks 428kg
- Capacity 0.96m³
- Width 2262mm
- Lift Capacity at Maximum Height 3475kg
- Lift Breakout Force 54kN
- Tilt Breakout Force 60.48kN
- Tipping Load - Breakout Point 7110kg
- Maximum Hinge Pin Height 3447mm
- Dump Angle at Full Height 46°
- Dump Height at Maximum Angle 2764mm
- Dump Reach at Maximum Angle 825mm
- Maximum Bucket Rollback at Ground Level 39°
- Digging Depth 147mm
- Maximum Grading Angle 116°
- Grill to Bucket Cutting Edge, Carry Position 1450mm
- Maximum Operating Height 4368mm
- Bucket Weight - Excluding Teeth and Forks 611kg
- Digging Depth - SAE Maximum 4119mm
- Digging Depth, Manufacturer's Maximum 4709mm
- Digging Depth - 2440 mm Flat Bottom 3743mm
- Digging Depth - 600 mm Flat Bottom 4094mm
- Digging Depth, 600 mm Flat Bottom, Manufacturer's 4670mm
- Reach from Swing Pivot at Ground Line 5609mm
- Maximum Operating Height 5719mm
- Loading Height 4031mm
- Loading Reach 1477mm
- Swing Arc 180°
- Bucket Rotation 205°
- Stabilizer Overall Width 2242mm
- Bucket Dig Force 57.22kN
- Stick Dig Force 35.29kN
