434F2
KEY SPECS
- Power - Net 64.9kW
- Dimensions - Stroke 127mm
- Net Power - 2,200 rpm - 80/1269/EEC 64.9kW
OVERVIEW
FEATURES AT A GLANCE
Operator Station
- 74 dB(A) internal sound level across the range no matter the engine option.
- Heated seat to keep the operator warm no matter what the conditions are.
- Fantastic layout of switches and controls provide an ergonomic and comfortable operating environment all day long.
- A redesigned roof cap provides the operator with superior visibility to the loader at maximum dump height, from the comfort of the seat.
- Secure your investment with the Cat Backhoe Loader security system designed specifically for the Cat Backhoe Loader. This device will keep your investment secure, while providing easy access for up to 25 specified people.
- The loader control now gives you more power at your fingertips: differential lock, transmission neutralizer and auxiliary control.
- The cab design now incorporates a flat profile and flat glass to ensure replacement and security is as easy as possible.
The 434F2 is fitted with mechanical controls providing low effort operation, with the ability to choose between ISO (Excavator) or SAE (Backhoe) control patterns. Providing easy and safe operation for operators of any experience or ability.

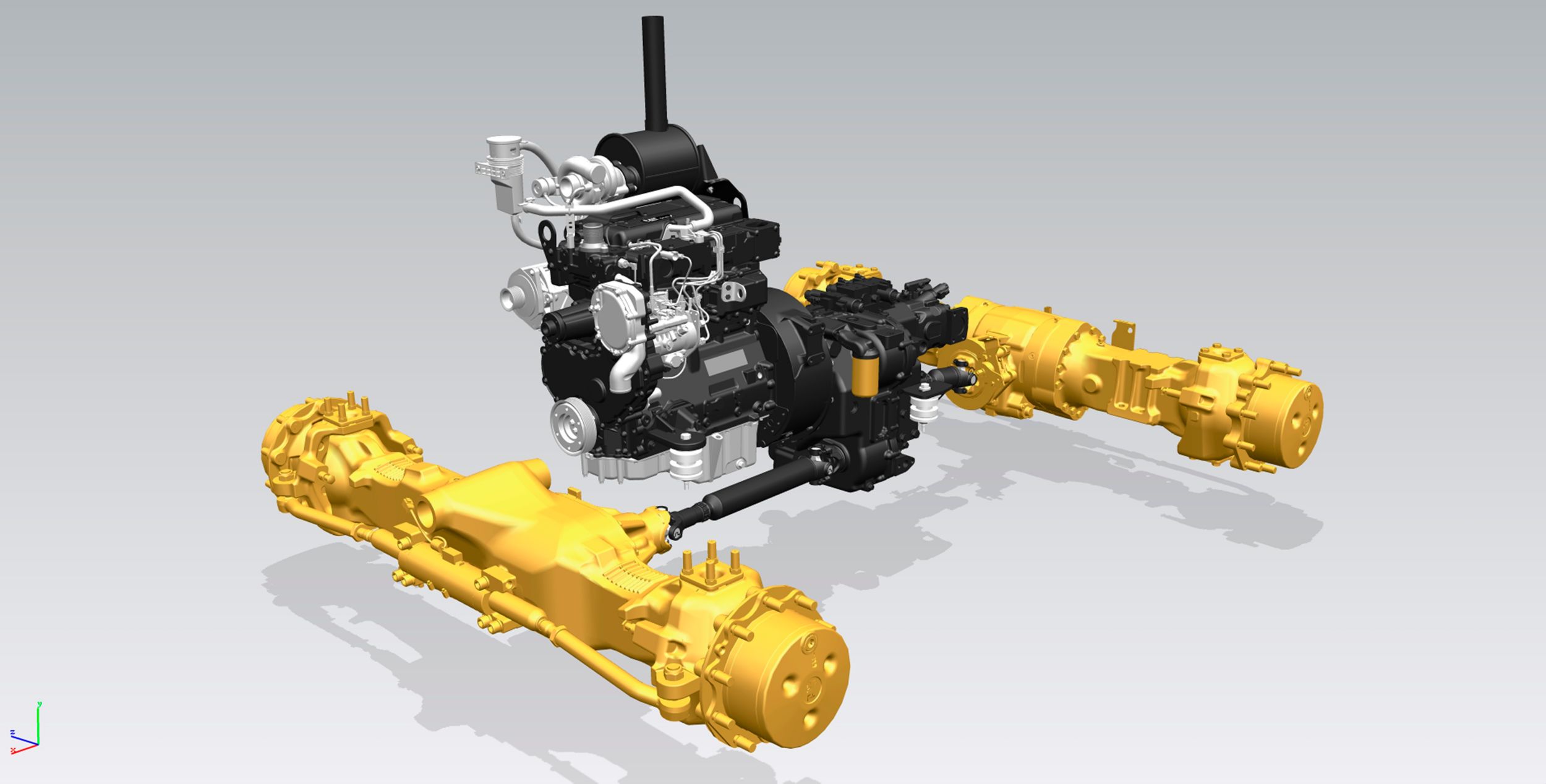

Power Train
- The choice of a 68.5 kW or 74.5 kW power rating is available as an EU Stage II or an EU Stage IIIA engine providing excellent performance for all applications.
- Outstanding fuel economy contributes to low owning and operating costs.
- A robust power pack, this engine has been seen in many divisions of Cat for a number of years and remains today a very popular option, delivering power when it is needed most.
- Proven world-class manufacturing and core engine designs ensure reliability, quiet operation, and many hours of productive life.
The F2 Series of Cat Backhoe Loaders boast heavy duty Cat axles- Providing high durability, low noise levels and superb traction on uneven surfaces.
- Three chamber system provides constant lubrication of the heavy duty running gear and bearings on all gradients.
- 100% locking differential is fitted as standard on the Cat Backhoe Loader, ensuring maximum traction in all conditions.
- The 434F2 is an equal sized tire machine which delivers many additional benefits: flotation and low ground pressure, increased loader performance and all wheel steer.
This optional six speed transmission will perfectly match itself to the application, carefully selecting the appropriate gear whether you're driving between job sites or using the loader function. Now the gear box has been tweaked, smoothing gear shifts and extending the top gear providing a more efficient and comfortable driving experience.
The lock-up torque converter provides a direct ratio between power pack and driveline when in the roading gears. This results in a 16% decrease in fuel consumption and an 11% increased average speed. The lock-up torque converter is an invaluable addition for those traveling between job sites.
Hydraulics
Intelligent hydraulics provide the right amount of power at the right time. Load sensing, closed center hydraulic system, actively matches hydraulic power and flow, allowing full hydraulic forces at any engine speed.
- Flow-sharing valves actively manage the flow of oil between each function of the machine. When the operator demands multiple operations the machine responds, providing smooth, effortless operation.
- The torque limiter on the machine helps to provide perfect synchronization between the engine, transmission and hydraulic system.
- Cat Backhoe Loaders have always provided a superior solution and this machine is no different. A high capacity variable displacement piston pump allows for perfect matching of power and operator demand, providing power when it is needed as well as great fuel economy.

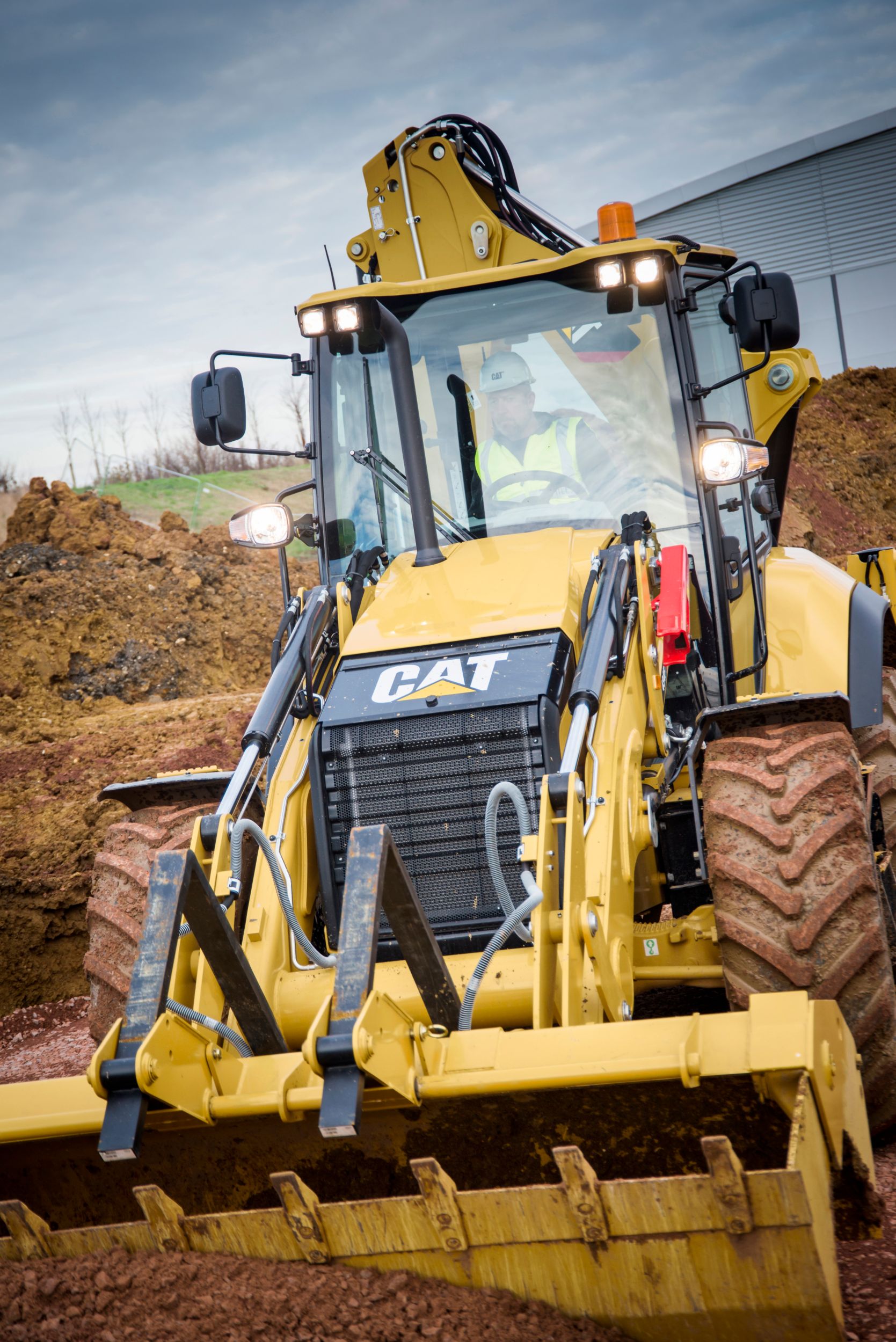

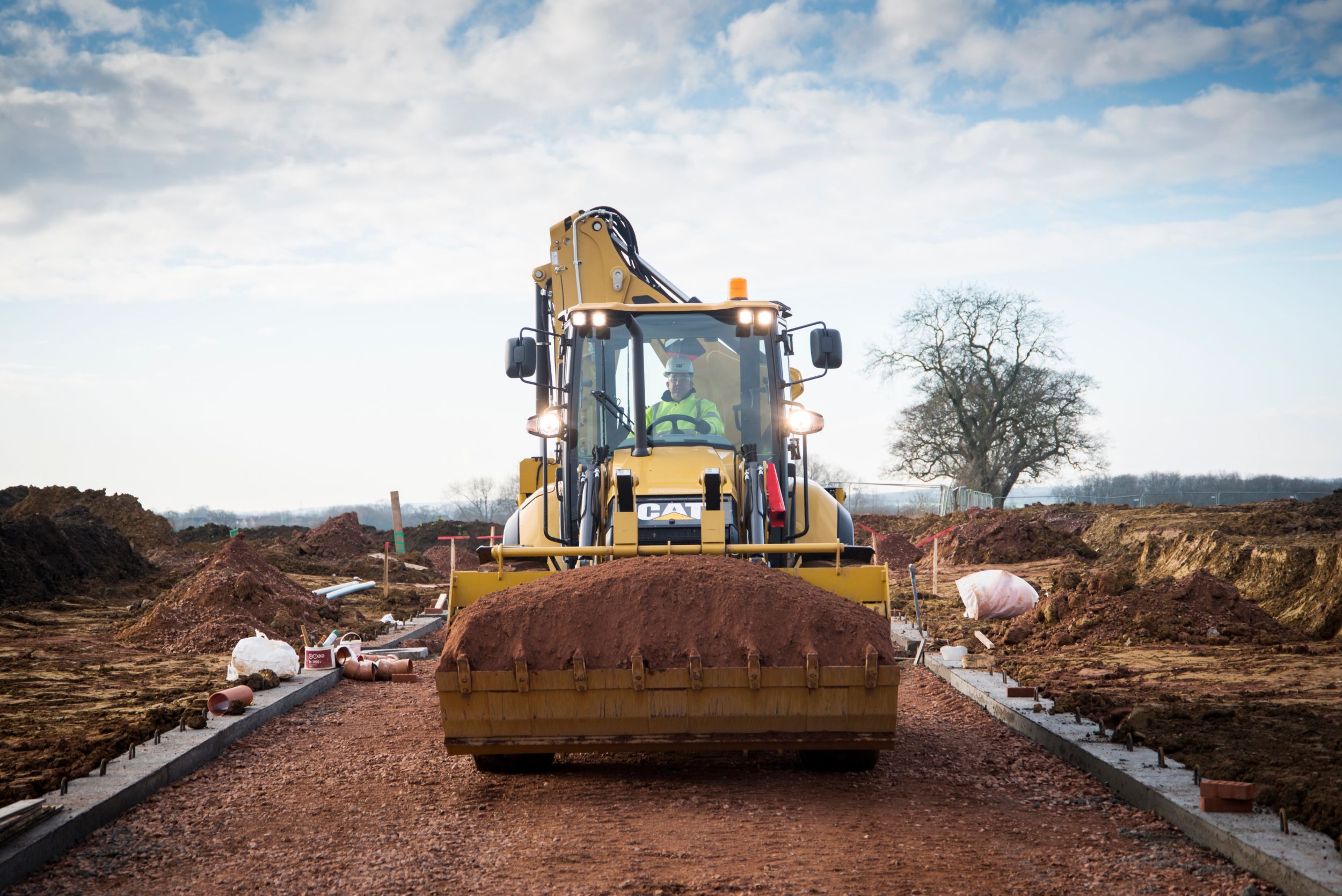

Parallel Lift Loader
- The proven design of the F2 loader provides ultimate performance. This machine makes light work of lifting and loading.
- Parallel lift loader arms offer superb forward visibility and self leveling, ensuring excellent material retention throughout the lift and lower cycles.
- Ride Control option offers loader suspension to improve ride comfort when moving around the job site or transporting the machine on the road. There is also the added benefit of increased material retention providing an invaluable boost in productivity.
- The Return to Dig system returns the bucket to level, great for applications with repetitive work cycles.

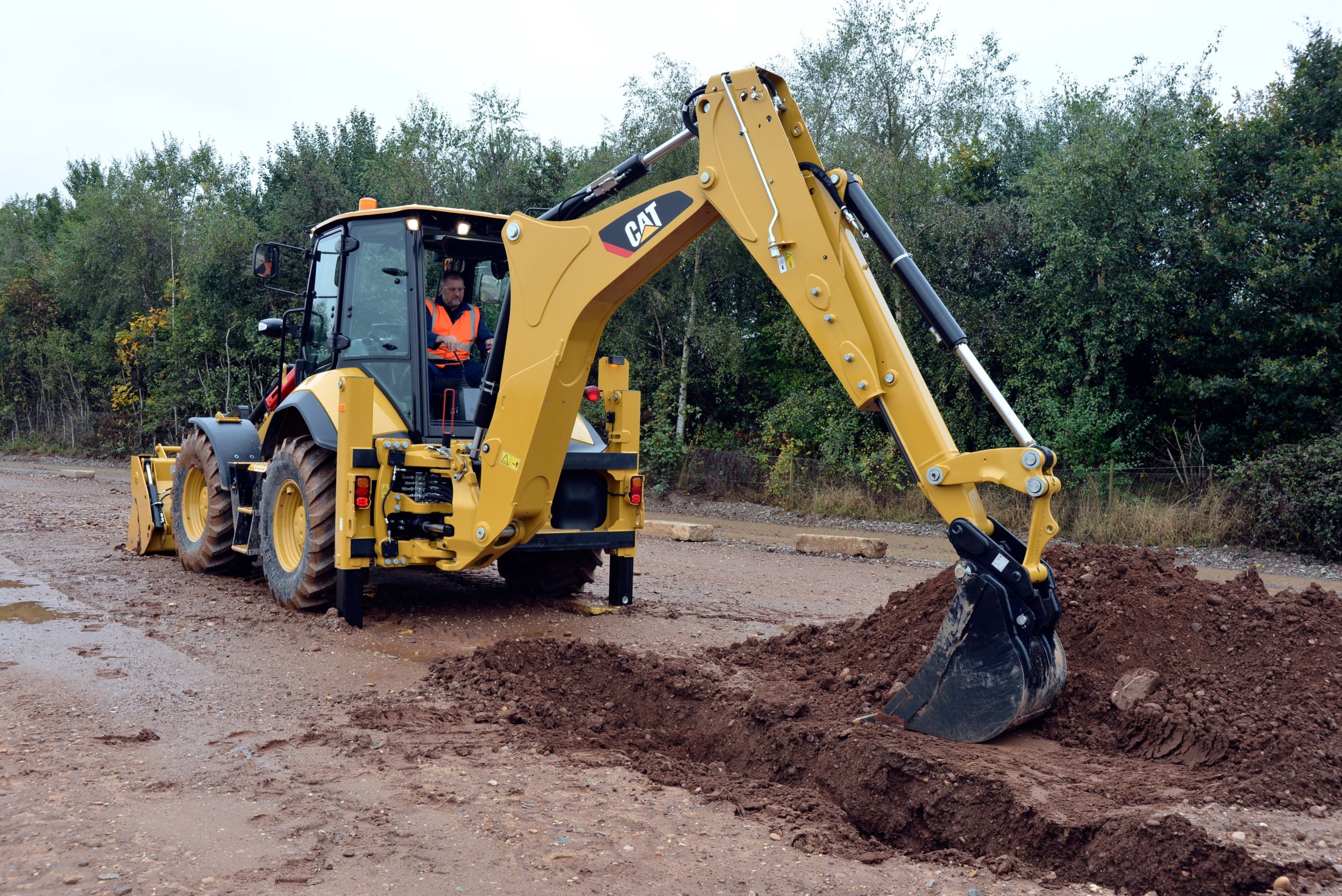

Backhoe
Whether close-up truck loading or digging over obstacles, the excavator style boom tackles the toughest jobs with ease. Combining versatility with the powerful breakout forces, the controllability of the load sensing, flow-sharing hydraulic system and the 434F2 is capable of high levels of productivity with minimum effort. The boom is a narrow design, ensuring maximum visibility to the work tool and ground.
The 434F2 is available with an extendible stick that increases dig depth and reach capability increasing the machines versatility and utilization, reducing the amount of machine repositioning and therefore reducing site damage. A sliding inner section design helps to ensure the wear pads remain as dirt free as possible, extending adjustment and replacement intervals. Auxiliary lines, for operating hydraulic work tools, have been routed so that they are protected from damage when working in the narrowest of trenches.
The F2 Series Side Shift Frame has exterior locking clamps, with no disassembly needed when servicing. The frame is a solid design with E-Coat protection, this prevents material build up in the frame and reduces the risk of rust, increasing the life of the frame.
![]()
The 434F2 is equipped with Cat Cushion Swing, which enables very fast trenching by damping the boom oscillation during trenching cycles.
![]()
Provides a hydraulic service to allow the operator to easily position the backhoe across the full width of the Side Shift Frame. Ideal for use in areas with minimal space and utility applications such as gas, electrical and telecoms.
![]()
The 434F2 is available with an extendible stick that increases dig depth and reach capability increasing the machines versatility and utilization, reducing the amount of machine repositioning and therefore reducing site damage. A sliding inner section design helps to ensure the wear pads remain as dirt free as possible, extending adjustment and replacement intervals. Auxiliary lines, for operating hydraulic work tools, have been routed so that they are protected from damage when working in the narrowest of trenches.
The F2 Series Side Shift Frame has exterior locking clamps, with no disassembly needed when servicing. The frame is a solid design with E-Coat protection, this prevents material build up in the frame and reduces the risk of rust, increasing the life of the frame.
Work Tools
General Purpose loader buckets are available as well as the hydraulically operated Multi Purpose bucket. These come in a range of sizes from 0.96 m3 to 1.3 m3.
![]()
Cat Work Tools provide a range of buckets in various sizes. It is easy to find the correct bucket for the application with a range including:![]()
Manual or hydraulic backhoe couplers make rear tool exchange quick, easy and safe. New Cat dual lock couplers have a self adjusting wedge design to ensure a tight fit. They also feature a safety lock which automatically engages.
![]()
- Brooms
- Material Handling Arms
- Truss Booms
- Forks
- Blades
Cat Work Tools provide a range of buckets in various sizes. It is easy to find the correct bucket for the application with a range including:- Standard Duty
- Heavy Duty
- High Capacity
- Rock
- Ditching
- Cold Planers
- Hammers
- Augers
- Vibratory Compaction Plates
Manual or hydraulic backhoe couplers make rear tool exchange quick, easy and safe. New Cat dual lock couplers have a self adjusting wedge design to ensure a tight fit. They also feature a safety lock which automatically engages.
Serviceability
Caterpillar understands that the easier a task is the more likely it is to be done. We have ensured that to service the Cat Backhoe Loader is as simple as it can be. The hood swings open to reveal engine and a hinged cooling pack designed for easy debris removal, keeping cooling performance to an optimum. All daily check points are grouped together and are easy to access. Sealed for life axles and driveshafts remove the need for operators to grease the time consuming and awkward areas below the machine.
![]()
The Extendible Stick (E-Stick) is designed to be self lubricating, to minimize the need for operator interaction. The stabilizers and E-Stick all have easily adjustable wear pads that require no disassembly. When wear pad adjustments are necessary, the adjustment bolts are easy to access, taking minutes to complete the adjustment.
![]()
All Cat filters are vertically mounted for spill free servicing and reduced oil contamination. These low micron filters remove microscopic particles from the oil, keeping the engine, transmission and hydraulic system running smoothly for years.
![]()
The hood opens to reveal the engine and a unique to Cat hinged cooling pack. The air conditioning pack lifts up and the radiator tilts forward with no tooling required, giving easy access for debris removal whether you are in the workshop or on a job site, keeping cooling performance to an optimum.
![]()
Customer Support
Your Cat dealer can offer a comprehensive range of CSA's which can be individually tailored to suit your finances and requirements. Dealers can offer a range of options from a full preventative maintenance with S∙O∙SSM package to a parts only CSA. Protect your valuable investment and know exactly what your monthly payments will be to help you run your business.
![]()
Have you explored the range of options available from your dealer to finance your machine? They can offer a selection of attractive packages tailored to suit your every requirement.
![]()
Your dealer can help you with your machine purchase decision, based on your requirements and help keep operating costs to a minimum. Is the machine you have in mind exactly the best for your job, or could there be a more suitable solution?
![]()
Speak to your dealer about additional support. They can advise you on operating techniques for your machines which will minimize wear and tear, maximize productivity, lower owning and operating costs and help you make the most of the fantastic features offered on the Cat Backhoe Loaders.
![]()
SPECIFICATIONS
- Power - Net 64.9kW
- Dimensions - Stroke 127mm
- Net Power - 2,200 rpm - 80/1269/EEC 64.9kW
- Net Power - 2,200 rpm - ISO 9249 64.9kW
- Dimensions - Bore 105mm
- Dimensions - Displacement 4.4l
- Rated Power (Standard) - 2,200 rpm - Gross - ISO 14396 68.4kW
- Maximum Torque 384N·m
- Torque Rise - 1,400 rpm - Net 38%
- Note *Meets Stage II/Tier 2 equivalent emission standards.
- Engine 3054C 68.5 kW Mechanical Turbo
- Operating Weight - Nominal 9257kg
- Operating Weight - Maximum 11500kg
- MP Bucket (1.00 m3/1.30 yd3) - With Fold-Over Forks 947.8kg
- MP Bucket (1.00 m3/1.30 yd3) - Without Fold-Over Forks 798kg
- Counterweights - Base 115kg
- Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - GP 0kg
- Operating Weight - ROPS Capacity - Maximum 11500kg
- Operating Weight 9257kg
- Air Conditioning 34kg
- Auto-Shift Transmission 76kg
- Ride Control 11kg
- 4.3 m Extendible Stick - Excluding Front Counterweight 203kg
- System Pressure - Backhoe 250bar
- System Pressure - Loader 250bar
- Maximum Pump Capacity 160l/min
- Type Closed Center
- Pump Type Variable Flow, Axial Piston
- Turning Circle (inner wheel not braked) - Outside Front Wheels 8.2m
- AWD Cylinder, One (1) Double Acting - Stroke 120mm
- AWD Cylinder, One (1) Double Acting - Rod Diameter 36mm
- Turning Circle (inner wheel not braked) - Outside Widest Loader Bucket 11m
- AWD Cylinder, One (1) Double Acting - Bore 65mm
- Type Front Wheel
- Power Steering Hydrostatic
- Cooling System 22l
- Rear Axle - Planetaries 1.7l
- Fuel Tank 160l
- Hydraulic System 95l
- Front Axle (AWD) - Center Housing 14l
- Engine Oil - With Filter 8.8l
- Transmission - Power Shuttle - AWD 15l
- Hydraulic Tank 40l
- Rear Axle - Center Housing 16l
- Front Axle (AWD) - Planetaries 1.7l
- Reverse - 1st 5.6km/h
- Forward - 4th 40km/h
- Reverse - 4th 40km/h
- Reverse - 2nd 9.2km/h
- Reverse - 3rd 20.9km/h
- Forward - 3rd 20.9km/h
- Forward - 1st 5.6km/h
- Forward - 2nd 9.2km/h
- Forward - 3rd 12.4km/h
- Forward - 5th 26.4km/h
- Reverse - 1st 6km/h
- Forward - 2nd 9.5km/h
- Forward - 1st 5.7km/h
- Forward - 4th 19.5km/h
- Reverse - 2nd 12.5km/h
- Forward - 6th 40km/h
- Gross Power - ISO 14396 68.5kW
- Gross Power - ISO 14396 74.5kW
- Net Power - ISO 9249 64.9kW
- Features (1) Heavy-duty rear axle with self adjusting inboard brakes, differential lock and final drives.
- Type Fully enclosed boosted, hydraulic, multiple discs.
- Digging Depth - SAE Maximum - E-Stick Extended - 4.26 m 5330mm
- Note *Stage IIIA with EN474 Prep. Pack.
- Forward - 2nd 9.5km/h
- Dimensions - Displacement 4.4l
- Net Power - 2,200 rpm - 80/1269/EEC 70.1kW
- Reverse - 3rd 26.9km/h
- Outside Cab 101dB(A)
- Minimum Counterweight Recommendations - Extendible Stick: Loader Bucket - GP 0kg
- Forward - 1st 5.7km/h
- Front Axle (AWD) - Static 22964kg
- Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - MP 0kg
- Maximum Torque 398N·m
- Inside Cab 74dB(A)
- Reverse - 1st 6km/h
- Rated Power (Standard) - 2,200 rpm - Gross - ISO 14396 74.4kW
- Net Power - ISO 9249 70.9kW
- Features (6) AWD also features double-acting steering cylinder with 52° steering angle for increased maneuverability.
- Note Travel speeds of two wheel drive backhoe loader at full throttle, when equipped with 16.9×28 rear tires.
- Engine 3054C 74.5 kW Mechanical Turbo
- Front Axle (AWD) - Dynamic 9186kg
- Net Power - 2,200 rpm - ISO 9249 70.1kW
- Forward - 4th 19.5km/h
- Dimensions - Displacement 4.4l
- Forward - 5th 25.5km/h
- Engine C4.4 74.5 kW Mechanical Turbo Intercooled
- AWD Cylinder, One (1) Double Acting - Axle Oscillation 11mm
- Maximum Torque 397N·m
- Note **Meets Stage IIIA/Tier 3 equivalent emission standards.
- Features (2) Completely enclosed and sealed.
- Transmission - Auto-Shift - AWD 19l
- Forward - 3rd 12.4km/h
- Reverse - 2nd 12.5km/h
- Features (5) Parking/secondary brakes are independent of the service brake system.
- Net Power - 2,200 rpm - 80/1269/EEC 70.9kW
- Dimensions - Bore 105mm
- Features (3) Self-adjusting.
- Features (3) AWD can be engaged on the move, under load, in any gear, forward or reverse.
- Rated Power (Standard) - 2,200 rpm - Gross - ISO 14396 74.5kW
- Note Travel speeds of two wheel drive backhoe loader at full throttle, when equipped with 16.9×28 rear tires.
- Torque Rise - 1,400 rpm - Net 31%
- Rear Axle - Static 22964kg
- Dimensions - Stroke 127mm
- Features (2) AWD is engaged by front console panel switch or by brake pedal during all-wheel-braking operation.
- Net Power - ISO 9249 70.1kW
- Dimensions - Stroke 127mm
- Torque Rise - 1,400 rpm - Net 32%
- Digging Depth - SAE Maximum - Standard Stick 4349mm
- Note *Meets Stage II/Tier 2 equivalent emission standards.
- Dimensions - Bore 105mm
- Minimum Counterweight Recommendations - Extendible Stick: Loader Bucket - MP 0kg
- Gross Power - ISO 14396 74.5kW
- Forward - 6th 40km/h
- Rear Axle - Dynamic 9186kg
- Digging Depth - SAE Maximum - E-Stick Retracted - 4.26 m 4353mm
- Features (4) Dual foot-operated boosted brake pedals can be interlocked for roading.
- Net Power - 2,200 rpm - ISO 9249 70.9kW
- Features (5) AWD front axle is pendulum mounted and permanently sealed and lubricated, requiring no daily maintenance.
- Reverse - 3rd 26.9km/h
- Features (6) Parking brake is mechanically applied through a hand lever located in the right side console.
- Features (4) AWD has outer final drives for easy maintenance.
- Features (7) Meets ISO 3450:1996 requirements.
- Note Travel speeds of two wheel drive backhoe loader at full throttle, when equipped with 16.9×28 rear tires.
- Features (1) Inboard oil-immersed, hydraulically actuated multiple Kevlar discs on final drive input shaft.
