6040/6040 FS

Equipment / NEW / Hydraulic Mining Shovels / Hydraulic Mining Shovels / 6040/6040 FS

METRIC

6040/6040 FS

OVERVIEW

BENEFITS

FEATURES AT A GLANCE

SPECIFICATIONS

TOOLS AND EXPERT HELP

PRODUCT BROCHURES AND DOWNLOADS

MEDIA GALLERY

KEY SPECS

Engine Output - SAE J1995 1516kW2032hp
Bucket Payload 39.6t43.7ton (US)
Operating Weight 407.3t449.0ton (US)

Get a quote

FIND A DEALER

OVERVIEW

FEATURES AT A GLANCE

Drive Systems

Giving you the option to choose the drive system best suited for your operation, the Cat 6040/6040 FS can be equipped with either two diesel engines for greater mobility, or an electric drive for better efficiency. Delivering durable, reliable power that will keep your primary loading tool producing, the C32 has proven its ability to perform in harsh mining conditions. Offering low operating costs, and supported 24/7 by your local Cat dealer, the C32 will help you achieve your production and profitability targets. Providing a lower cost-per-ton alternative to diesel powered hydraulic mining shovels, our electric drive option maintains the ruggedness you need and offers superior availability since no refueling and less service is required. The 6040 AC/6040 AC FS is the ideal solution for operations that do not require a great deal of mobility and value a low cost-per-ton model.

Twin-engine Concept

You will realize enhanced safety, greater uptime, more productivity, and better serviceability as a result of our twin engine concept. The ability to move your shovel to a safe area for repair, away from high walls, blast zones, or other safety hazards, is still possible with the use of a single engine. 65% of full production can still be achieved with the use of a single engine. This is due to the shovel's continued ability to exert maximum digging forces, to lower the front attachment without requiring engine power (i.e., pressure-free), and to recuperate energy via its closed-loop swing circuit. Troubleshooting is greatly simplified and expedited with the ability to compare one engine versus the other.

TriPower System

You will experience safer, easier and faster front shovel operation with TriPower, a system proven on over a thousand Cat hydraulic mining shovels worldwide. Generating superior mechanical leverage and control, our FS configured hydraulic mining shovels utilize a unique boom design that employs rotatable triangular rockers. This design facilitates quicker cycle times, increased effective lifting force, constant boom momentum, automatic constant bucket angle, and automatic roll-back limiter. - Faster lifting speeds are achieved, because the design enables the use of smaller-diameter boom cylinders. - Design transfers digging forces into the superstructure, creating supporting boom momentum in addition to momentum that is generated hydraulically. - Allows smaller boom cylinders for higher lifting speed. - Keeps lifting speed constant. - Enables the shovel to lift a single load along the entire digging distance. - No retracting of stick cylinders is required, ensuring that all hydraulic pumps are supplying the boom-up function. - Material spillage is avoided during boom lifting, because the filled bucket automatically maintains a constant bucket angle. - On conventional kinematics the operator has to control manually the bucket position during lifting which cut in half the available oil flow for the boom cylinders. - Preventing material spillage back on to the operator's cab and machine superstructure, our system ensures that the bucket is always in a safe position, without operator control/manipulation, when it is at maximum height. - The boom cylinder continues to receive maximum oil flow, because the operator does not need to activate the bucket cylinder.

Hydraulic System

Ensuring neat organization for safe operation, easy inspection, and fast service, and reducing the number of hoses needed, the main valve block is located on top of the boom. Faster cycle times are realized, because float valves are used to lower the boom instead of engaging pumps. This facilitates faster boom movements and allows other operating functions to occur simultaneously, such as bucket curl and stick in/out. Your operators will experience greater control with our five circuit hydraulics, allowing for two cylinder motions, two travel motions, and swing to be controlled simultaneously.

Independent Oil Cooling System

Providing a more efficient means of cooling, particularly in demanding applications, our unique independent oil cooling system will extend the life of your hydraulic mining shovel's components. Our system is independent of return oil, achieving efficiency through the utilization of dedicated pumps that provide cooling capacity as needed, whether the engine is idling or under load. That means optimum oil temperature is being maintained, even while your operator waits for the next truck to load. Competitive hydraulic mining shovels only provide cooling when the machine is working and the engine is under load. Additional efficiency is achieved via our thermostatically controlled radiator fan speed. The fans do not run until oil temperature exceeds a temperature of 50° C (122° F), saving energy. The highly efficient oil cooling system ensures that the oil temperature is only 25° C to 30° C (45° F to 54° F) higher than the ambient temperature. Thus the hydraulic oil working temperature remains within the optimal operating viscosity range of 50° C to 70° C (122° F to 158° F).

Pump Managing System

Delivering optimal performance, our pump managing system continuously evaluates actual engine and hydraulic operating values against set values, and adjusts pump output accordingly. This results in efficient use of the engine for greater productivity. Pump managing system advantages include:

Best possible utilization of engine output and engine overload avoidance via electronic load limit regulation
Less energy consumption and less thermal load on hydraulic oil with zero oil flow regulation for main pumps
Less fuel consumption and lower noise emission via automatic RPM reduction
Reduced component wear and lower noise emission with automatic oil flow reduction for closing/opening of bucket clam
Protection of components with automatic oil flow reduction if hydraulic and/or engine coolant temperature exceed set maximum
Improved operator control response via on-demand pump flow

Closed-loop Swing Circuit

Delivering faster cycle times and improved energy efficiency, while also generating less heat, our closed-loop swing circuit provides distinct advantages over competitive machines utilizing open-circuit swing systems. Kinetic energy captured during the swing motion is fed back into the system during deceleration, providing more power to drive the main and auxiliary pumps. Energy is saved during deceleration, because braking occurs via counteracting controls, as opposed to throttles used in open circuit swing systems. Energy is saved during acceleration via torque control, providing a pressure balance valve that controls the swing pump against pressure in the closed-loop swing circuit, ensuring that only the minimum necessary oil flow is utilized at any given time. Faster boom lift motion during swing is achieved with our closed-loop swing system, increasing overall productivity.

Operator's Cab

We understand that the most important factor in your hydraulic shovel's effectiveness is the performance of its operator. To help make their workday as productive as possible, we've incorporated safety and comfort features into the 6040/6040 FS operator's cab.

Safety glass is used for all cab windows, and armored glass for the windshield.
Operator's seat is equipped with integrated safety switch that automatically neutralizes the hydraulic controls when the operator leaves the seat.
Position of cab module, approximately 6.8 m (22 ft 4 in) high, provides excellent visibility of the digging and loading areas.
Cab meets Falling Object Protection System (FOPS) and DIN ISO 3449 standards.

Pneumatically cushioned, multi-adjustable operator's seat.
Large, transflective color touch-screen display (BCS III) provides vital machine monitoring and diagnostic data for convenient troubleshooting and service assistance.
Enhanced control response and servo adjustment capability via electro-hydraulic servo control.

Electronic Control System

Help your team meet productivity and performance standards with our intuitive, informative on-board electronics.

The system relays actuating signals from the joysticks, delivering fast and precise machine reactions that reduce operator fatigue. Uptime is increased as a result of simplified troubleshooting and advanced diagnostic capabilities. Easier setting of servo control characteristics allow operators to adjust to their preference. No hydraulic lines are present in the cab or the cab module, ensuring a clean arrangement with less noise emission. Streamlined system requires only one type of controller for each function (i.e., left side drive train, right side drive train, servo, and auxiliary) reducing the number of required controllers in the system and associated replacement stock. Engine works in optimal range of performance during the entire digging cycle, reducing fuel burn. Reduced hydraulic pulsation lessens stress imposed on the engine and hydraulic components. Less vibration and more even machine movement via reduced pressure peaks. The Parts book, Technical handbook, and Operating handbook, as well as hydraulic and electric schematics, are available in electronic format.

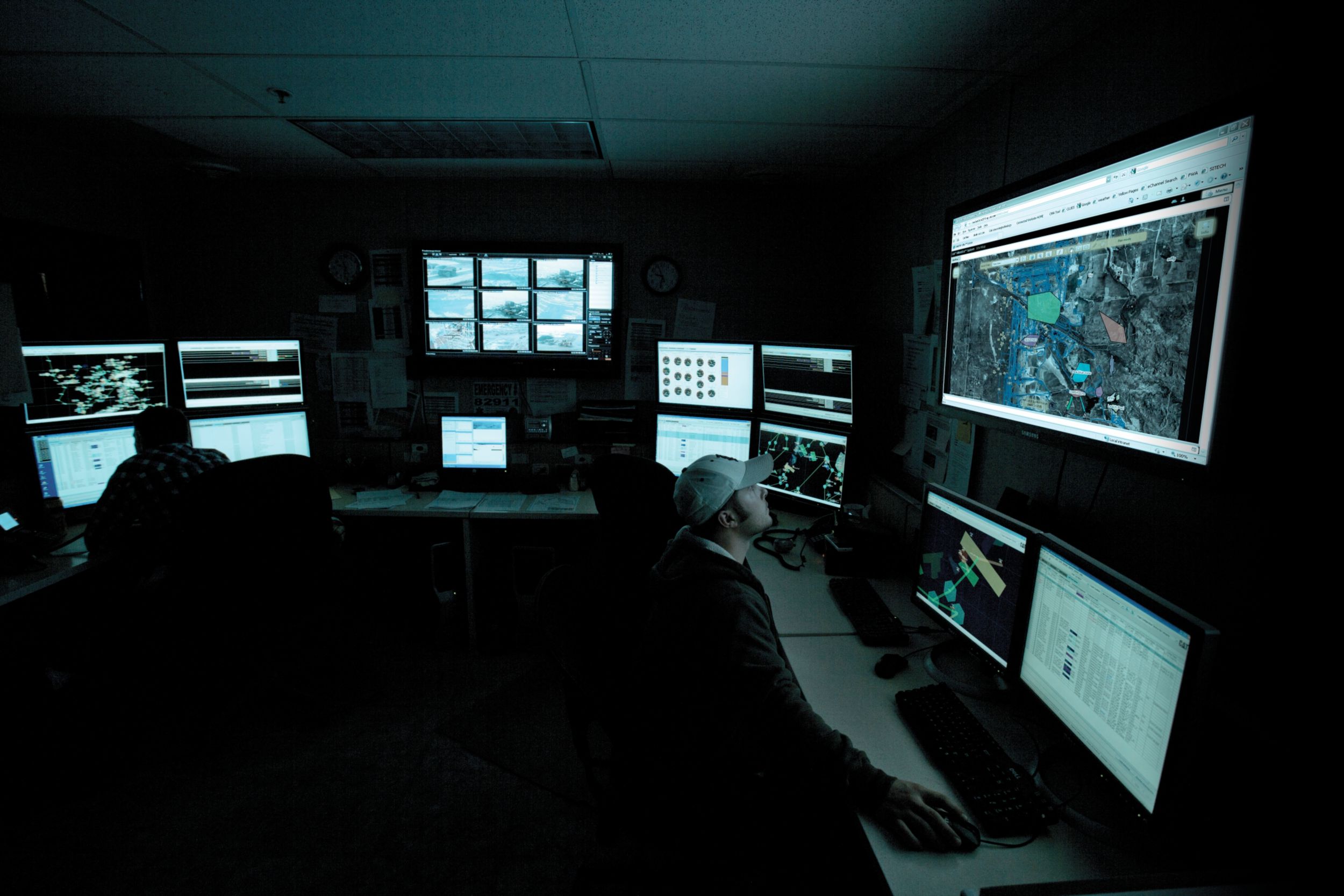

Cat MineStar System and Technology Solutions

Aimed at enhancing the productivity and profitability of your hydraulic mining shovel, we currently offer a combination of Cat MineStar System offerings and Cat hydraulic mining shovel technology solutions.

Helping you achieve your goals for enhanced mine site safety, improved efficiency, reduced operating costs, and greater profitability, the Cat MineStar System provides the most comprehensive suite of mining technology products in the industry. It consists of a number of configurable capability sets - Fleet, Terrain, Detect, Health, and Command - that allow you to scale the system to your mine site needs. Cat MineStar System helps you manage everything from material tracking to sophisticated real-time fleet management, machine health systems, autonomous equipment, and more. The Cat 6040/6040 FS is currently able to utilize three of the Cat MineStar System capability sets:

Fleet Fleet provides real-time machine tracking, assignment and productivity management, providing a comprehensive overview of all your asset operations from anywhere in the world.
Terrain Terrain enables high-precision management of drilling, dragline, grading and loading operations through the use of guidance technology. It increases machine productivity and provides you real-time feedback for improved efficiency.
Detect

Detect provides equipment operators with enhanced awareness for increased site safety, using a combination of radars, an in-cab display, and multiple cameras. The remaining Cat MineStar System capability sets are currently under development for the Cat hydraulic mining shovel product line.

Enhancing diagnostic capabilities and providing detailed troubleshooting functions, our Board Control System uses sensors throughout the machine to monitor operating data, record faults, and notify the operator audibly and visually. This promotes the earliest possible detection of faults and allows for timely maintenance planning and assistance for speedy repair.

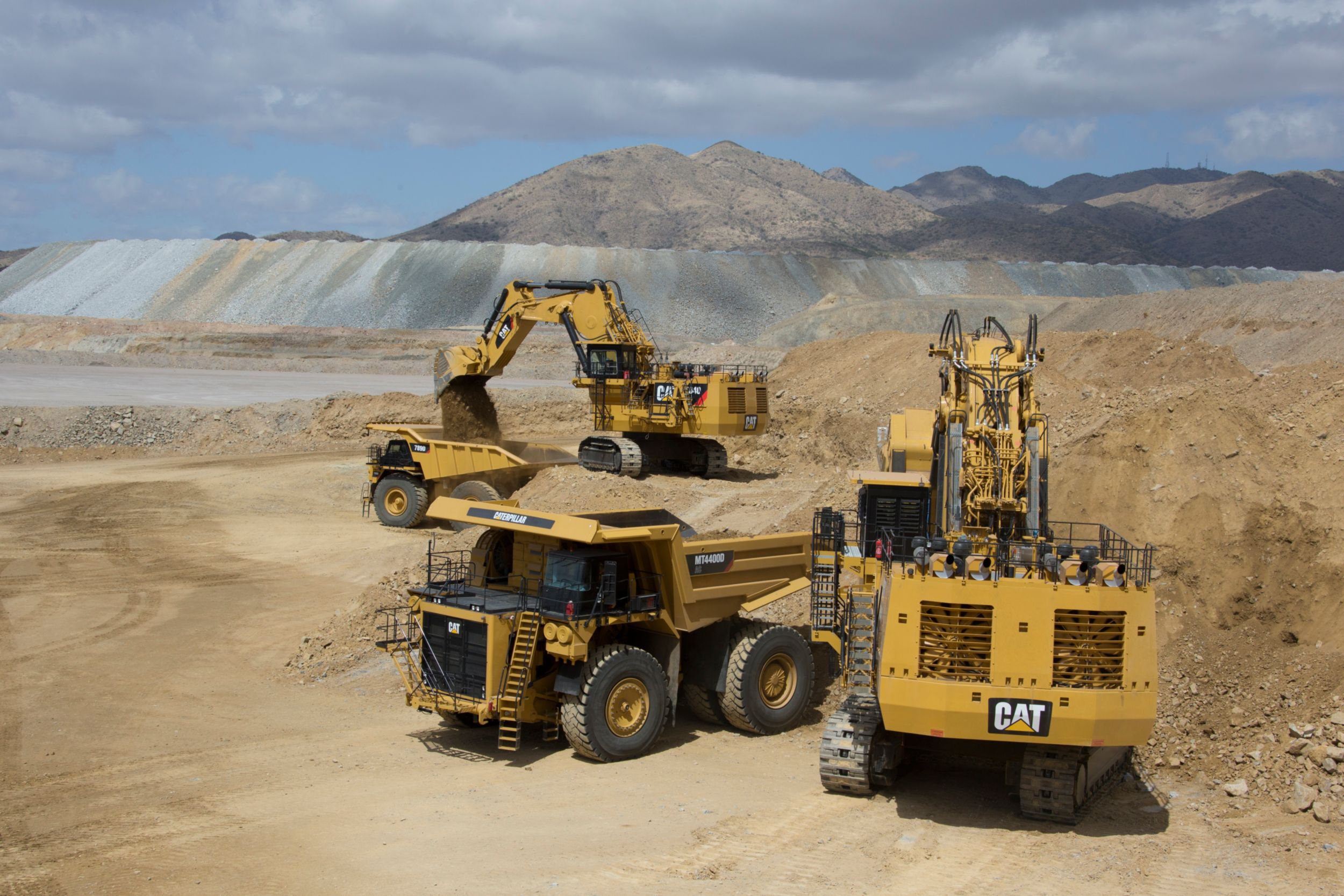

Loading/Hauling Efficiency

For full truck payloads with minimum loading time, an efficient loading/hauling system begins with an optimized equipment match. Cat hydraulic mining shovels are matched with Cat mining trucks to maximize volume of material moved at the lowest operating cost per ton.

Front Attachment Options and Structures

To extend service life and ensure that your shovel keeps producing, our front shovel attachment structures are designed for durability and dependability. Extended performance in the harsh mining conditions you face daily is accomplished through selection of high-strength steels and rugged castings, joined and thermally stress-relieved, to help you achieve your productivity targets.

Heavy castings at all pivot points
Better flow of forces and less welding seams, as top chords are made of one bend plate
Entire boom and stick are stress relieved after welding
Welding procedures allow for internal welding (double prep weld)

Swing System

Extending component life and ultimately improving machine uptime, our swing system includes a triple-race swing roller bearing with internal gearing connected to an automatic lubrication system. For added reliability, all lube lines are located inside the roller bearing for maximum protection. Easier maintenance is afforded by the free accessibility of swing gears and rotary distributor.

Undercarriage

Extending track life and improving overall machine reliability, our undercarriages are engineered with extensive use of finite element analysis, steel structures are optimized, travel motors are well-protected by strong cover plates and hinged door covers, and a unique robust track chain incorporates a combined pad/link design. Further extending track life, a state-of-the-art track tensioning system with membrane accumulator automatically adapts the tensioning of the tracks, depending upon operating conditions.

Safety

Sharing your commitment to safety, and driven by our commitment to Zero Harm, we work tirelessly to design the safest machines possible to protect your most important asset; your employees. That is why we updated the design of the 6040/6040 FS in accordance with the principles of MDG 41 and 15, and offer this standard, not as an option or upgrade. Some examples of the safety-enhancing features of the Cat 6040/6040 FS hydraulic mining shovel include the following:

All stairways have 45° angle for safe and comfortable access and movement about the machine.
Slide down emergency egress ladder directly adjacent to the operator's cab.
Hydraulically operated boarding ladder with emergency lowering via nitrogen accumulator ensures that ladder remains operational even when engines shut off.
Machine swing and propel capability is switched-off when ladder is in down position.

Improved routing and clamping of hydraulic hoses.
Hydraulic hoses and electrical wiring are separated from each other for fire prevention.
All service areas are accessible via anti-slip walkways, and trip hazards are eliminated.
All hot surfaces are covered to prevent burns.

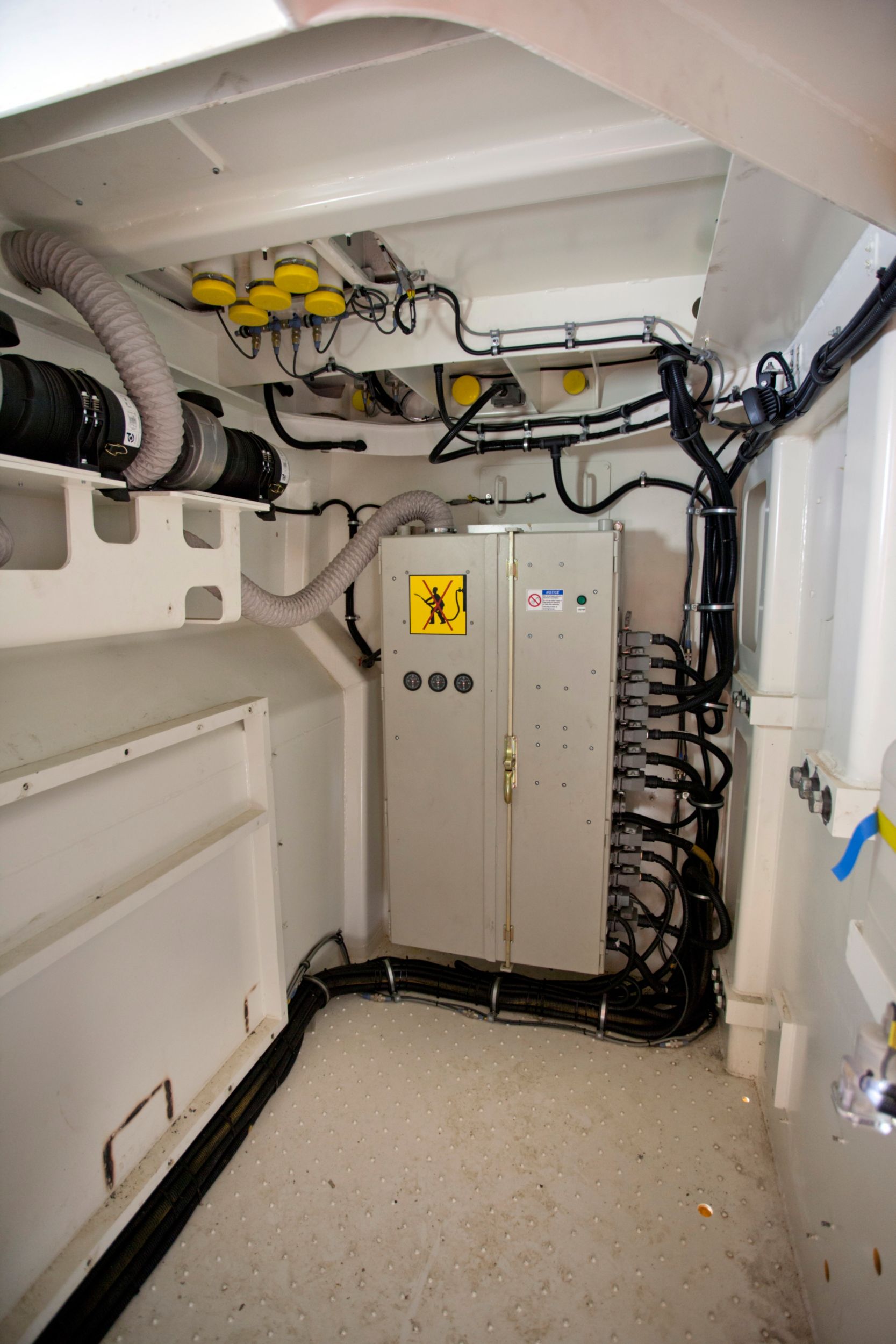

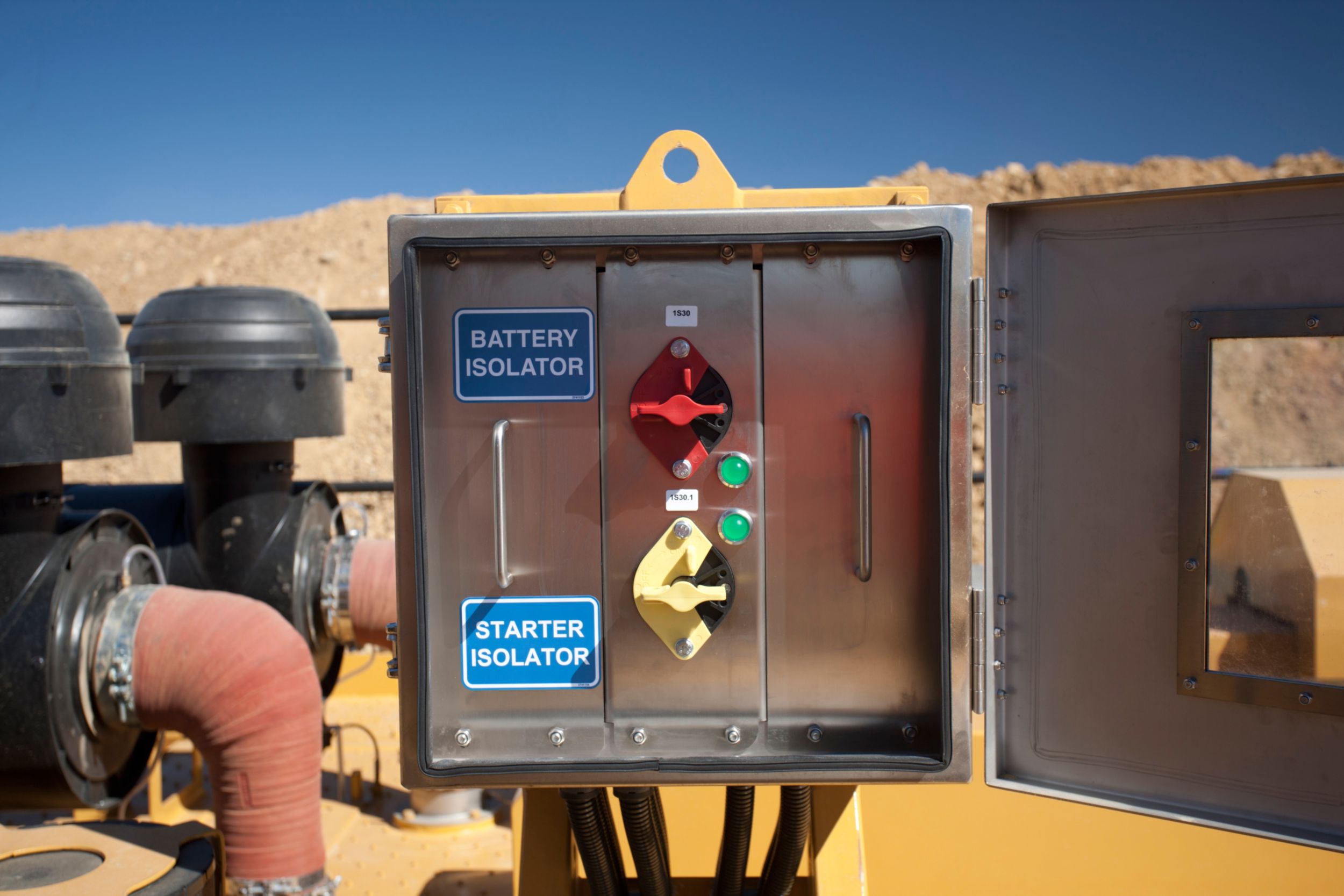

Cabinet with battery isolation switch, mounted on top deck directly above the battery box, allows quick and easy shut-off of voltage on the entire shovel.
Cabinet contains a starter isolator which allows on-board voltage, but prevents starting of engines.

An easily accessible, standard shut-off switch located in the cab shuts down the electrical system in case of emergencies.
Additional shut-off switches are located on the machine, in the machine house or accessible from the ground with pull ropes.

• Minimizing the potential for material spill onto the attachment or cab, the TriPower automatic roll-back limiter prevents the bucket from being curled back too far.

Serviceability

Lowering your operating costs and maximizing your hydraulic mining shovel's uptime and productivity is of supreme importance to us. To that end, we've made vital components more accessible and designed simpler systems to make maintenance activities quicker and easier.

Facilitating easier maintenance, exceptional accessibility is provided to systems like the swing motor, swing gearbox and rotary distributor in the well organized superstructure. The engine is accessible from three sides.

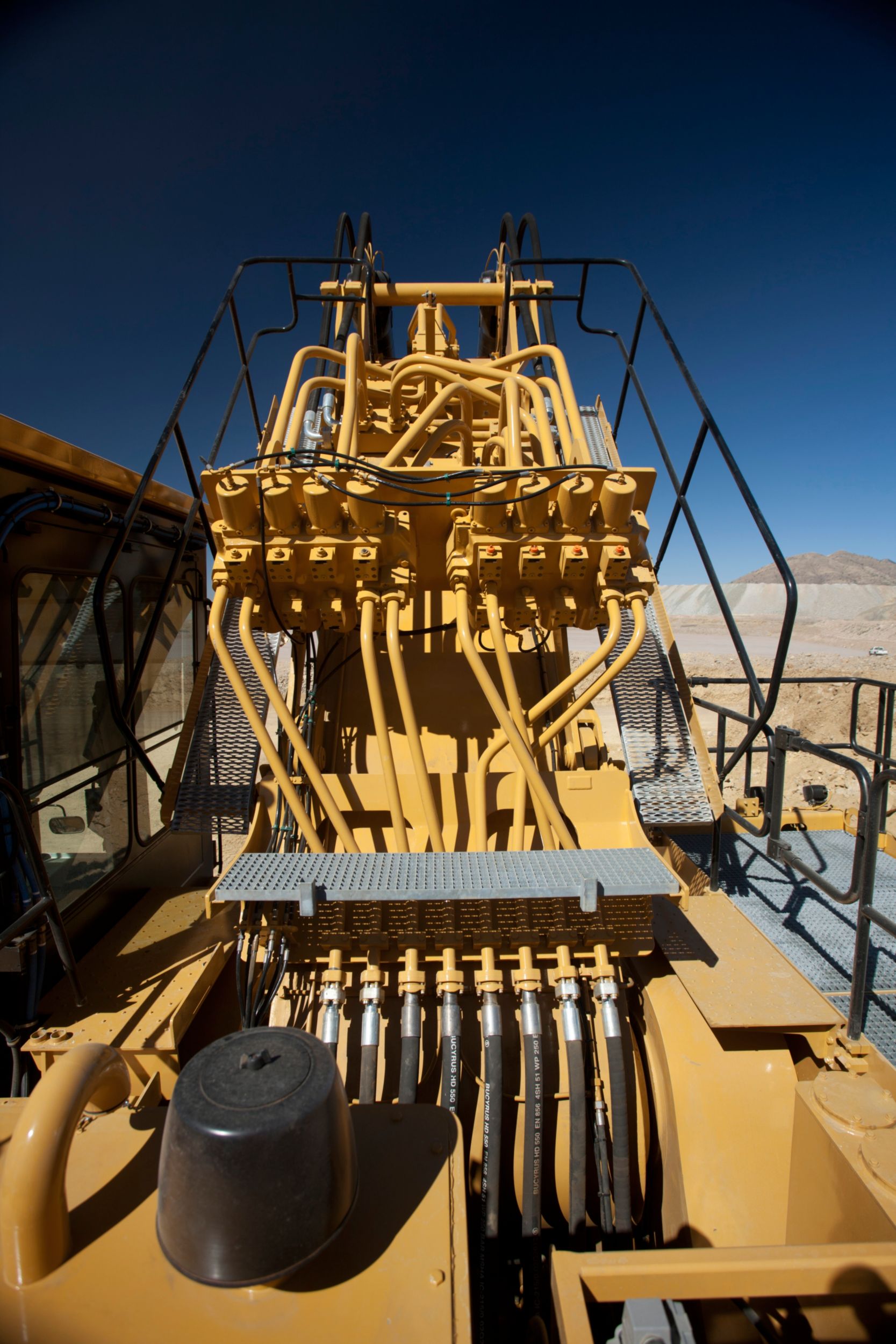

Easily accessed by walkways on both sides, the boom-mounted main valve block, a feature unique to Cat hydraulic mining shovels, provides a clean layout and reduces the number of hoses leading from the superstructure to the attachment.

Ensuring neat organization for safe operation, easy inspection and fast service, the design of our hydraulic system significantly reduces the total number of frequently moving hoses from the superstructure to the attachment.

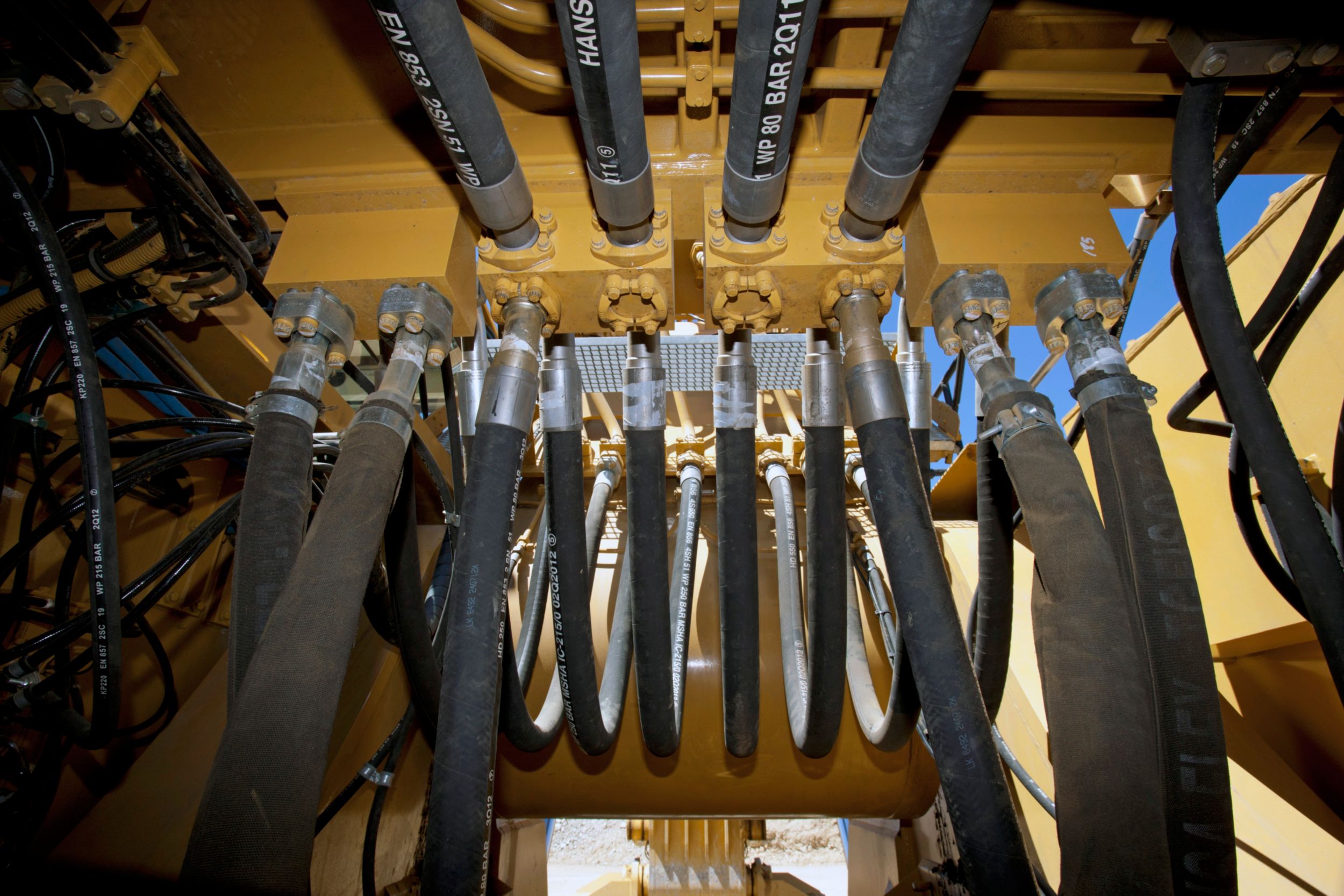

Longer hose life via improved routing in accordance with MDG design standards.

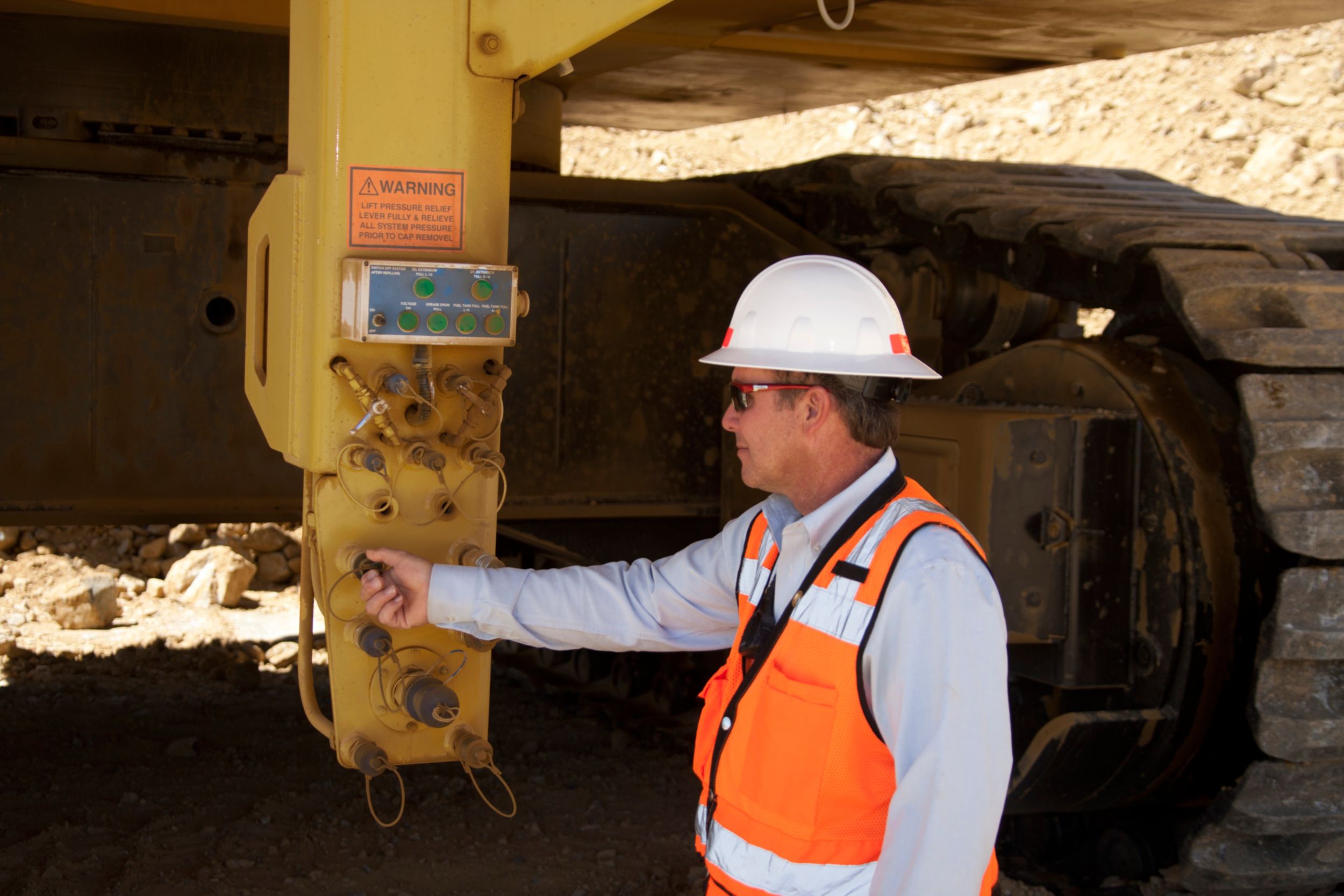

• Quick fuel and fluid replenishment is made easy with a retractable service station underneath the engine module, accessible at ground-level.

• Twin-engine design facilitates troubleshooting of drive trains, as one engine can be compared to the other.

Customer Support

Cat dealers offer a wide range of solutions, services and products that help you lower costs, enhance productivity and manage your operation more efficiently. From the time you select a piece of Cat equipment until the day you trade or sell it, the support you get from your Cat dealer makes the difference. Cat dealers provide the level of support you need, on a global scale. Dealer expert technicians have the knowledge, experience, training and tooling necessary to handle your repair and maintenance needs, when and where you need them. When Cat products reach the field, they are supported by a worldwide network of parts distribution facilities, dealer service centers and technical training facilities to keep your equipment up and running. Cat customers rely on prompt, dependable parts availability through our global dealer network, ready to meet your needs 24/7. Every piece of Cat equipment is designed and built to provide maximum productivity and operating economy throughout its working life. Cat dealers offer a wide range of service plans that will maximize uptime and return on your investment, including:

Preventive Maintenance Programs
Diagnostic Programs, such as Scheduled Oil Sampling and Technical Analysis
Rebuild and Reman Option
Customer Support Agreements

Operating and maintenance costs are influenced by many application and site-specific factors, such as: material density and fragmentation, payload, bench height, truck positioning, ground conditions, amount of traveling and maintenance. Your Cat dealer can provide you with an understanding of the effects application characteristics and operating techniques have on maintenance and operating costs. Your Cat dealer can arrange training programs to help operators improve productivity, decrease downtime, reduce operating costs and enhance safety.

Sustainability

Meeting the needs of today without compromising the needs of tomorrow is the goal for all Cat machinery. The commitment to helping you operate safely and sustainably is affirmed in the production of the 6040/6040 FS hydraulic mining shovel.

Electric Power Option - Produces less emissions, heat, and sound, and avoids disposal/replenishment of engine oil and oil filters.
Energy Recovery - Emit less heat and improve energy efficiency via the energy recovery capability of the closed-loop swing circuit.
Rebuilds - Decrease your energy use and material consumption with a machine that's designed to be rebuilt.

SPECIFICATIONS

Engine Output - SAE J1995 1516kW2032hp
Bucket Payload 39.6t43.7ton (US)
Operating Weight 407.3t449.0ton (US)
Note Specifications above apply to Backhoe configuration. Face Shovel and Frontless configurations are also available.
Hydraulic Tank Capacity - AC Version - Approximately 4000.0l1057.0gal (US)
Maximum Pressure - Swing Pumps 350.0bar5080.0psi
Swing Pumps - Maximum Oil Flow - AC Version 3 × 491 L/min (3 × 130 gal/min)
Main Pumps - Diesel Version 4 × variable swash plate pumps
Main Pumps - AC Version 4 × variable flow axial piston pumps
Maximum Pressure - Travel 350.0bar5080.0psi
Hydraulic Tank Capacity - Diesel Version - Approximately 3400.0l898.0gal (US)
Maximum Pressure - Attachment 300.0bar4350.0psi
Swing Pumps - Maximum Oil Flow - Diesel Version 4 × 321 L/min (4 × 85 gal/min)
Total Volume of Hydraulic Oil - AC Version - Approximately 6400.0l1585.0gal (US)
Total Volume of Hydraulic Oil - Diesel Version - Approximately 5800.0l1532.0gal (US)
Swing Pumps - AC Version 3 × reversible swash plate pump
Main Pumps - Maximum Oil Flow - AC Version 4 × 746 L/min (4 × 197 gal/min)
Swing Pumps - Diesel Version 4 × reversible swash plate pump
Main Pumps - Maximum Oil Flow - Diesel Version 4 × 724 L/min (4 × 191 gal/min)
Features (1) Cooling system fully independent of all main circuits, i.e. controlled cooling capacity is available whenever engine is running
Components (1) Gear type cooling pumps supplying high-volume, low-pressure oil to aluminum coolers
Oil Flow of Cooling Pumps - AC Version 4 × 379 L/min (4 × 100 gal/min)
Features (2) Fan speed is thermostatically controlled
Components (2) Variable axial piston pumps supplying low-volume, high-pressure oil to fans
Diameter - Fan 2 × 1524 mm (2 × 60 in)
Oil Flow of Cooling Pumps - Diesel Version 2 × 799 L/min (2 × 211 gal/min)
Features (3) Extremely high cooling efficiency to ensure optimum oil temperature
Board Control System (BCS III) Features (6) Graphic charts of logged data
Components (4) Windshield with parallel intermittent wiper/washer
Board Control System (BCS III) Features (1) USB, Lan (TCP/IP) and CAN BUS interfaces for data export
Components (5) All-round safety glass, armored windshield and sliding side window
Components (7) Under roof mounted heating ventilating and air conditioning system
Board Control System (BCS III) Features (5) On-screen troubleshooting assistance
Board Control System (BCS III) Features (3) Robust instrument panel including large (12 in) colored touch screen for intuitive handling
Internal Dimensions of Cab - Height 2150.0mm7.05ft
Components (11) Sliding emergency ladder (kick-down type) with ladder cage
Internal Dimensions of Cab - Width 1600.0mm5.25ft
Components (10) External sun shields at side and rear windows
Components (3) Roller blinds at all windows
Operator's Eye Level - Approximately 6.8m22.31ft
Components (1) Switch in seat cushion to automatically neutralize the hydraulic controls when operator leaves the seat
Components (2) Pneumatically cushioned and multi-adjustable comfort seat with lumbar support, seat heating, safety belt, head- and armrests
Board Control System (BCS III) Features (7) Fault memory with storage of related conditions
Internal Dimensions of Cab - Length 2200.0mm7.22ft
Components (6) FOPS (rock guard; approved according to DIN ISO 3449) integrated into cab structure
Components (9) Fold-away auxiliary seat with safety belt
Components (12) Machine access via retractable access stairway, stairway angle approximately 45°, hydraulically operated
Board Control System (BCS III) Features (2) On-screen PDF documentation (e.g. operating instructions, technical handbook, spare parts catalog, electric circuit diagram)
Components (8) Joystick controls integrated in independently adjustable seat consoles
Board Control System (BCS III) Features (4) Electronic monitoring, data logging & diagnostic system for vital signs & service data of engines, hydraulic & lube systems
Components (13) Robust instrument panel including large colored BCS screen with transflective technology
Features (4) All raceways and the internal gearing of swing ring supplied by automatic central lubrication system
Features (1) Dirt wipers at swing ring to prevent build-up of debris between swing ring and carbody
Swing Ring Triple-race roller bearing with sealed internal gearing
Maximum Swing Speed - Diesel Version 4.7r/min4.7r/min
Swing Drive 3 compact planetary transmissions with axial piston motors
Maximum Swing Speed - AC Version 5.1r/min5.1r/min
Parking Brake Wet multiple disc brake, spring-loaded/hydraulically released
Features (3) Hydraulic braking of the swing motion by counteracting control
Features (2) Closed-loop swing circuit with torque control
Components (6) Automatic hydraulic retarder valve to prevent over-speed on downhill travel
Gradeability - Travel Drives - Maximum 57.0%57.0%
Components (5) Fully hydraulic self-adjusting track tensioning system with membrane accumulator
Components (1) All running surfaces of sprockets, idlers, rollers and track links are hardened
Track Pads - Each Side 42
Components (4) All teeth contact areas of sprocket and pad links are hardened
Travel Speed - 1st Stage - Maximum 1.5km/h0.93mile/h
Travel Speed - 2nd Stage - Maximum 2.5km/h1.55mile/h
Bottom Rollers - Each Side 7
Travel Drives - Each Side 1 planetary transmission with 2 two-stage axial piston motors
Maximum Tractive Force 2097.0kN471260.0lb
Components (2) Acoustic travel alarm
Parking Brake Wet multiple disc brake, spring applied/hydraulically released
Support Rollers - Each Side 2 plus a skid plate in between
Components (3) Cast double-grouser combined pad-links with bushings connected by hardened full floating pins
Type (2) System failures displayed by Board Control System
Type (4) Connected to the lubrication system are: - pivot points of attachment, bucket and cylinders
Capacity - Grease Container 1000.0l264.0gal (US)
Type (5) Connected to the lubrication system are: - raceways of the swing roller bearing - two greasing pinions for the internal gearing of the swing ring
Type (1) Dual-circuit system with hydraulically driven heavy-duty pumps and electronic time relay control adjust the pause/lube times
Type (3) Grease filters (200 μm) between service station and container, as well as directly behind grease pump
6040 FS - Ground Pressure 24.1 N/cm2 (35.0 psi)
6040 - Ground Pressure 24.3 N/cm2 (35.3 psi)
6040 - Note Other track pads available on request
6040 - Operating Weight 407300.0kg897930.0lb
6040 FS - Operating Weight 404600.0kg891980.0lb
6040 FS - Note Other track pads available on request
6040 FS - Standard Track Pads 1200.0mm3.9ft
6040 - Standard Track Pads 1200.0mm3.9ft
Batteries in Series/Parallel Installation 6 × 210 Ah - 12V each; 630 Ah - 24V in total
Components (4) 10 LED high-brightness working flood lights - 8 for working area - 2 for rear end
Components (1) 13 LED service lights
Components (2) Battery isolation relays and switches
Components (5) 2 LED high-brightness access flood lights
Components (3) Emergency stop switches accessible from ground level, in engine module and in operator's cab
System Voltage 24V
Installation Retractable service station installed underneath the engine module and easily accessible from ground
All buckets (FS and BH) are equipped with a wear package consisting of: (2) - Wing shrouds on side walls - Heel shrouds at bottom edges
Type (8) Guards for shovel cylinders (FS)
Maximum Altitude - Without Deration - At 10° C Above Sea Level 2500.0m8200.0ft
Bore 145.0mm5.71in
Components (1) Additional high-capacity water separator
Emissions U.S. EPA flex
Fuel Tank Capacity 7800.0l2060.0gal (US)
Total Rated Net Power - ISO 3046/1 1516 kW 1,750 min-1 (2,032 hp 1,750 min-1)
Components (3) Heavy-duty air filters
Components (4) Microprocessed engine management
Total Rated Gross Power - SAE J1995 1516 kW 1,750 min-1 (2,032 hp 1,750 min-1)
Displacement 32.1l1959.0in³
Alternators 2 × 150 A
Make/Model 2 × Cat C32 (Tier 2)
Stroke 162.0mm6.38in
Number of Cylinders - Each Engine 12
Components (2) Two-stage fuel filter including water separator
Aspiration Turbocharged and air-to-air aftercooled
Components (5) Hydraulically driven radiator fan with electronically controlled fan speed
Total Rated Net Power - SAE J1349 1516 kW 1,750 min-1 (2,032 hp 1,750 min-1)
Type (1) Inspection hole in monoboom BH
Type (2) Pressure-free lowering of boom (FS and BH) and stick (FS) by means of a float valve
Shovel attachment with unique TriPower kinematics ensuring the following main features: (1) - Automatic roll-back limiter to prevent material spillage - Kinematic assistance to hydraulic forces
Type (7) Boom and sticks are torsion-resistant, welded box design of high-tensile steel with massive steel casting at pivot areas
Type (5) Welding procedures allow for internal counter-welding (double prep weld) wherever possible
Type (3) Special wear packages for highly abrasive materials on request
Type (6) Boom and sticks are stress-relieved after welding
Shovel attachment with unique TriPower kinematics ensuring the following main features: (3) - Constant boom momentum throughout the whole lift arc - Crowd force assistance
All buckets (FS and BH) are equipped with a wear package consisting of: (1) - Special liner material covering main wear areas inside and outside of bucket - Lip shrouds between teeth
Shovel attachment with unique TriPower kinematics ensuring the following main features: (2) - Horizontal automatic constant-angle bucket guidance - Vertical automatic constant-angle bucket guidance
Type (4) Catwalks with rails at boom (FS and BH)
Gross Power - SAE J1995 1516.0kW2032.0hp
Note Electric drive option available (1400 kW) on 6040 AC/6040 AC FS
Net Power - SAE J1349 1516.0kW2032.0hp
Engine Model 2 × Cat® C32
Bucket Capacity - Face Shovel (heaped 2:1) 22.0m³28.8yd³
Bucket Capacity - Backhoe (heaped 1:1) 22.0m³28.8yd³
Operating Weight - Backhoe 407.0t449.0t
Bucket Payload 40.0t44.0t
Operating Weight - Face Shovel 405.0t446.0t
Voltage 6.6 kV ±10% (other on request)
Type (2) Custom-made electric motor with increased gap between rotor and stator to withstand severe mining conditions
Frequency 50 Hz (60 Hz on request)
Rated Current IN 156 A (at 6.6 kV)
Output 1400.0kW1877.0hp
Type (1) Power limit control by Pump Managing System
Type (3) Squirrel cage induction motor
Starting current 350% of IN (197% of IN Optional)
Revolutions 1,500 min-1 (1,800 min-1 at 60 Hz)
