834K Scoops for Coal & Woodchips

Equipment / NEW / Dozers / Wheel Dozers / 834K Scoops for Coal & Woodchips

METRIC

OVERVIEW

BENEFITS

FEATURES AT A GLANCE

SPECIFICATIONS

TOOLS AND EXPERT HELP

PRODUCT BROCHURES AND DOWNLOADS

MEDIA GALLERY

KEY SPECS

Engine Model C18 Cat®
Net Power 370kW496hp
Bore 145mm5.7in

Get a quote

FIND A DEALER

OVERVIEW

FEATURES AT A GLANCE

Move More with Less Fuel

The Cat C18 engine is built and tested to meet your most demanding applications. Three C18 engine options are available in this machine: Tier 4 Final/Stage IV with aftertreatment, Tier 3 equivalent, or Tier 2 equivalent.

Fully integrated electronic engine controls works in concert with the entire machine to make your fuel go farther.
Use less fuel idling with Engine Idle Shutdown.
Maximized durability with Delayed Engine Shutdown.

Featuring all new Advanced Productivity Electronic Control Shifting (APECS) transmission controls provides greater momentum on grades and fuel savings by carrying that momentum through the shift points.

Enable your operators to maximize efficiency by varying machine rimpull while putting more horsepower to hydraulics.

Reduced tire wear
Enables full throttle shifts for faster cycle times
Provides smooth approach to the dump target for less spillage and faster cycle times.

Eliminates TC losses while lowering system heat
Improves travel speeds
Reduces cycle times in load and carry operations

New flow sharing implement and steering variable displacement load sensing piston pumps.
Hydraulic flow now on demand, for improved fuel efficiency.

Long Term Value and Durability

Your bottom line is improved by highly durable structures that achieve multiple life cycles and withstand the toughest conditions.

Full box-section rear frame resists torsional shock and twisting forces.
Heavy-duty steering cylinder mounts efficiently transmit steering loads into the frame.
Axle mounting has been optimized for increased structural integrity.
Lower hitch pin, frame plate, and bearing size have been increased for longer life.

Push beams are through-width, not merely attached to side of frame.
In corner dozing, stresses are transferred and absorbed through a larger portion of the frame.

Built to Perform

Experience maximum responsiveness and control with STIC that combines directional selection, gear selection and steering into a single lever.

Simple side-to-side motion turns machine right or left, minimizing operator movements.
Easy to operate finger controlled gear selection.
Smoother, faster cycles and less operator fatigue through the use of low effort integrated controls.

Building your success begins with a best-in-class transmission designed specifically for mining applications.

Consistent, smooth shifting and efficiency through integrated electronic controls that utilize Advanced Productivity Electronic Control Strategy (APECS).
Long life and reliability through heat treat gear and metallurgy.
Four forward and three reverse speeds to match your application.

Durability and efficiency at the heart of your 834K comes from the Cat C18 Engine. Optimum performance is built in through the use of a 6 cylinder, four-stroke design.

Optimized performance and quick engine response with an electronic control module.
Reliable efficiency with complete control over injection timing, duration and pressure with Mechanically Actuated Electronic Unit Injection (MEUI™).
Extended engine life and improved fuel efficiency with reduced rated speed.
Option of: Tier 4 Final/Stage IV emissions standards, Tier 3 equivalent, or Tier 2 equivalent.

Lower your operating costs utilizing advanced ICTC and RCS for modulated rimpull.

Reduce tire slippage and wear by modulating rimpull from 100 to 25 percent while depressing left pedal. After 25 percent rimpull is achieved the left pedal applies the brake.
Reduce the potential for wheel slippage without reducing hydraulic efficiency with RCS.
Improve fuel efficiency in certain applications with our lock-up clutch torque converter providing direct drive.

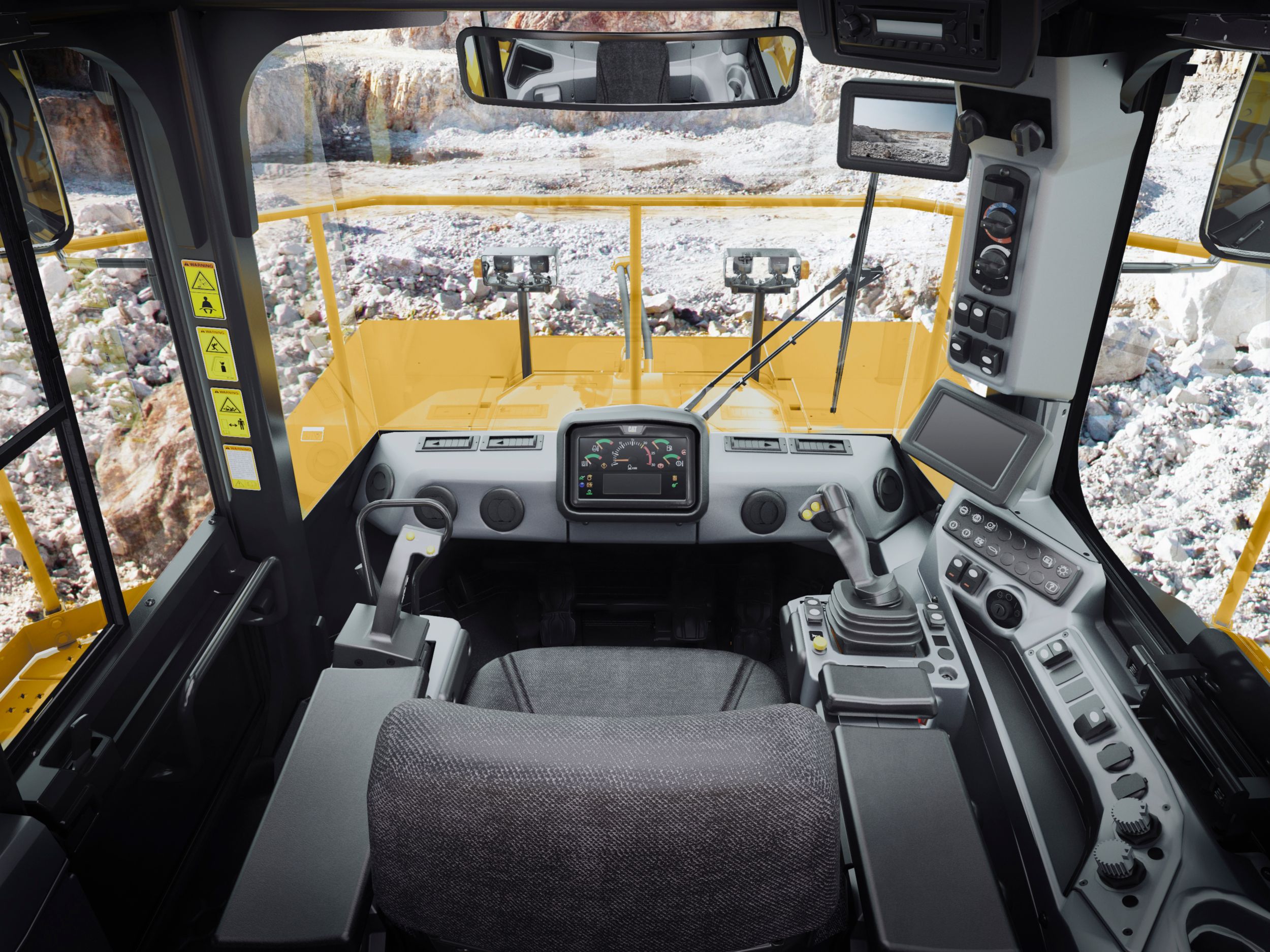

Work in Comfort

Your operators can work more efficiently and stay comfortable with our customer-inspired cab features. 834K Wheel Dozer Scoop

Enter and exit the cab easily and safely with these newly designed, ergonomic features.

Fold up STIC steer/armrest.
Reduced angles on access stairways.
Standard stairway lighting.

Enhance comfort and reduce operator fatigue with Cat Comfort Series III seat.

Mid back design and extra thick, contoured cushions.
Air suspension system.
Easy-to-reach seat levers and controls for six way adjustments.
Seat-mounted implement pod and STIC steer that moves with the seat.
76 mm (3 in) wide retractable seat belt.

Ergonomic placement of switches and Information display keep your operators comfortable all day every day.

Large backlit membrane switches feature LED activation indicators.
Switches feature ISO symbols for quick function identification.
Two position rocker switch activates the electro hydraulic park brake.

Your operator's productivity is enhanced with our clean, comfortable cab environment.

Experience reduced vibrations from isolation cab mounts and seat air suspension.
Maintain desired cab temperature with automatic temperature controls.
Pressurized cab with filtered air.
Sound level reduced to a quiet 71 dB(A) when equipped with the sound suppression package.
Convenient floor storage tray/lunch box.

Integrated Cat® Technologies

The 834K electronic systems have been completely integrated to function as one machine. This integration creates a smart machine and more informed operator, maximizing the productivity of both. 834K Wheel Dozer Scoop

Cat Product Link allows remote monitoring of equipment to improve overall fleet management effectiveness. Events and diagnostic codes, as well as hours, fuel, idle time and other information are transmitted to a secure web based application, VisionLink™. VisionLink includes powerful tools to convey information to users and dealers, including mapping, working and idle time, fuel level and more. We have worked hard to help our customers and operators perform at their best through our Vital Information Management System (VIMS 3G).

Easy-to-view graphical information display features a large touch screen interface.
Intuitive operation and easy navigation with our enhanced user interface.
Decrease service time by keeping operators informed about machine system malfunction or operation.

Technology that Gets Work Done

Cat MineStar System is the industry's broadest suite of integrated mine operations and mobile equipment management technologies, configurable to suit your operation's needs. Its capability sets – Fleet, Terrain, Detect, Health and Command – contain a range of technologies that let you manage everything from fleet assignment and condition monitoring to remote and autonomous control. The 834K can take advantage of many of these advanced technologies, some of which are standard out of the factory. Fleet provides comprehensive, real-time machine tracking, assignment and productivity management, giving you a comprehensive overview of all operations from anywhere in the world. Terrain with your 834K enables high-precision management of loading operations through the use of guidance technology. It increases 834K productivity and provides you real-time feedback for improved efficiency.

Detect helps increase operator awareness, enhancing safety at your operation. It includes a range of capabilities designed to assist the operator with areas of limited visibility around fixed and mobile equipment.

Health delivers critical event-based machine condition and operating data for your entire fleet. It includes comprehensive equipment health and asset monitoring capabilities, with a wide range of diagnostic, analytic and reporting tools.

Safety First

We are constantly introducing features on our machines in an effort to enhance safety for the operator. 834K Wheel Dozer Scoop

Left and right hand stairs with 45 degree angle enhance safety for operators getting on and off the 834K.
Continuous walkway with non-skid surfaces are designed into the service areas.
Maintain three points of contact at all times through ground level or platform accessible service areas.

Optional heated mirrors ensure enhanced visibility for safe operation.
Standard Cat Vision or optional Cat Detect with radar increase operator awareness around the machine.
LED lights provide excellent workspace visibility.
Optional cab mounted LED warning beacons.

Reduced vibrations to the operator with isolated cab mounts and seat mounted implement and steering controls.
Low interior sound levels.
Pressurized cab with filtered air.
Standard 76 mm (3 in) seat belts on the operator seat.

Reduce Environmental Impact

Sustainability is designed and built into our 834K's features.

Engine Idle Shutdown and Auto Idle Kickdown can help you save fuel by avoiding unnecessary idling.
Reduce waste generation with our maintenance free batteries.
The 834K is built for multiple lives. To assist with maximizing machine life, Caterpillar provides a number of sustainable options such as our Reman and Certified Rebuild programs. In these programs, reused or remanufactured components can deliver cost savings of 40 to 70 percent, which lowers operating cost.
Caterpillar offers retrofit packages to bring new features to older machines, maximizing your resource. And, when you go through the Cat Certified Rebuild program, these retrofit kits are part of the rebuild process.

Achieve Greater Productivity

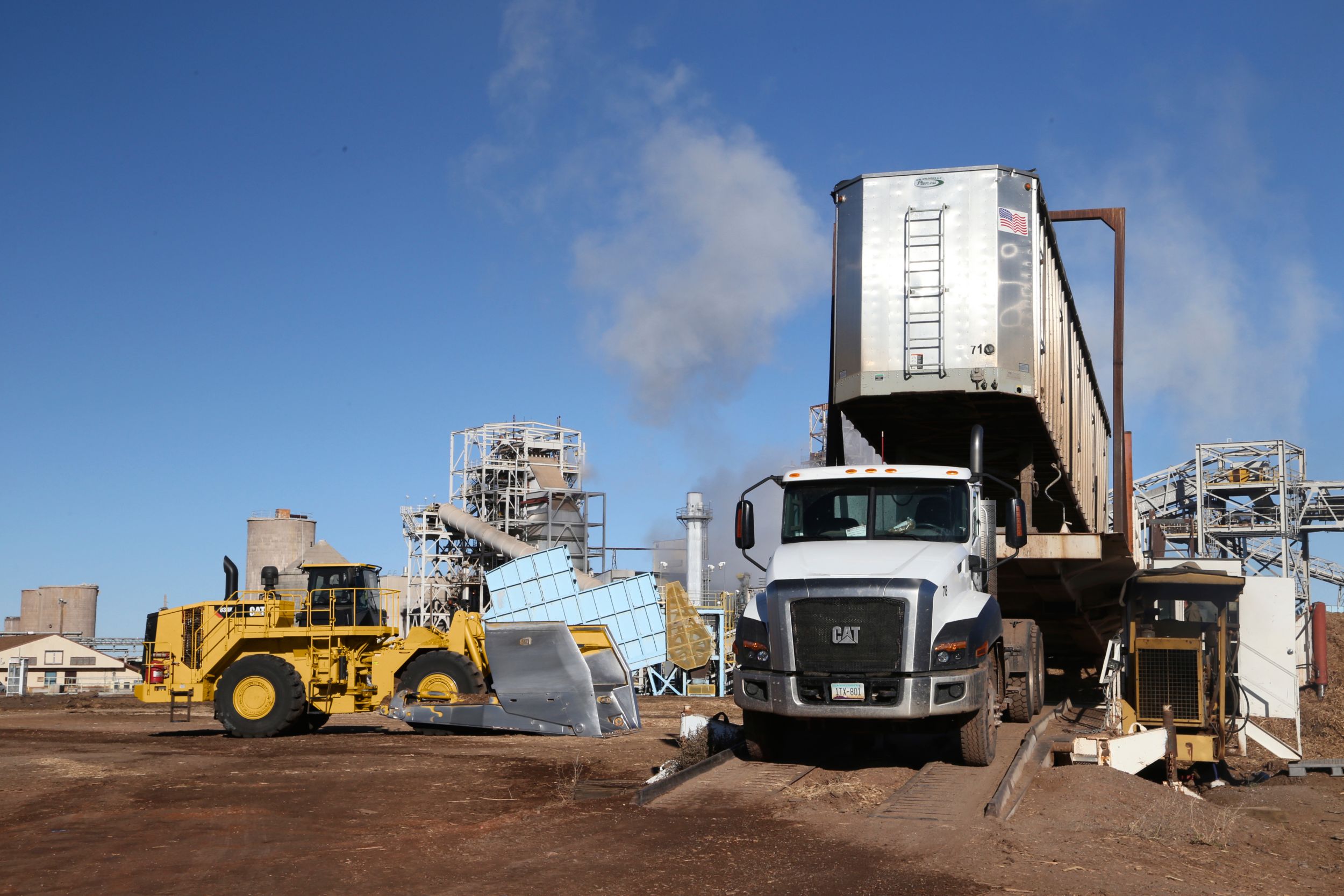

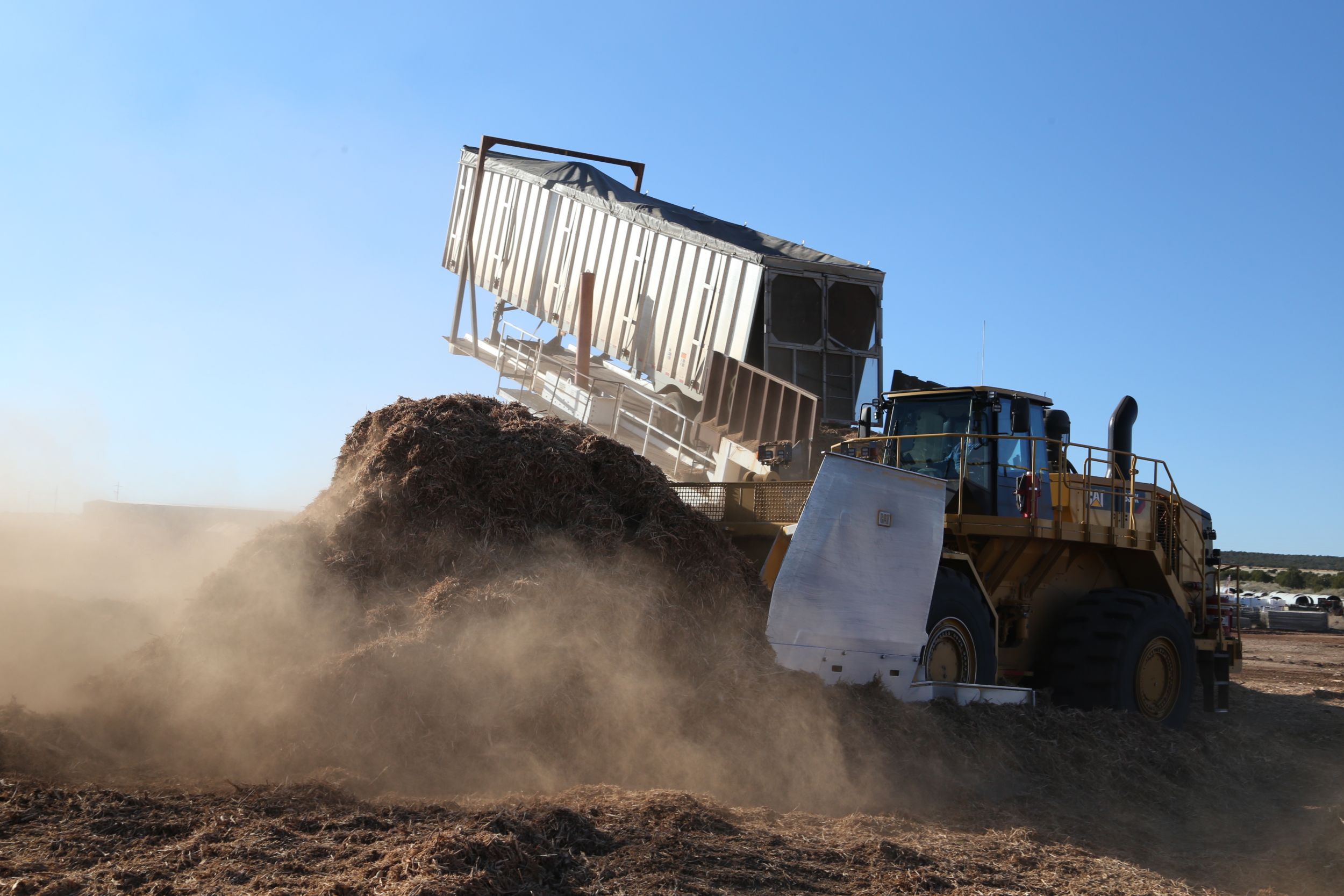

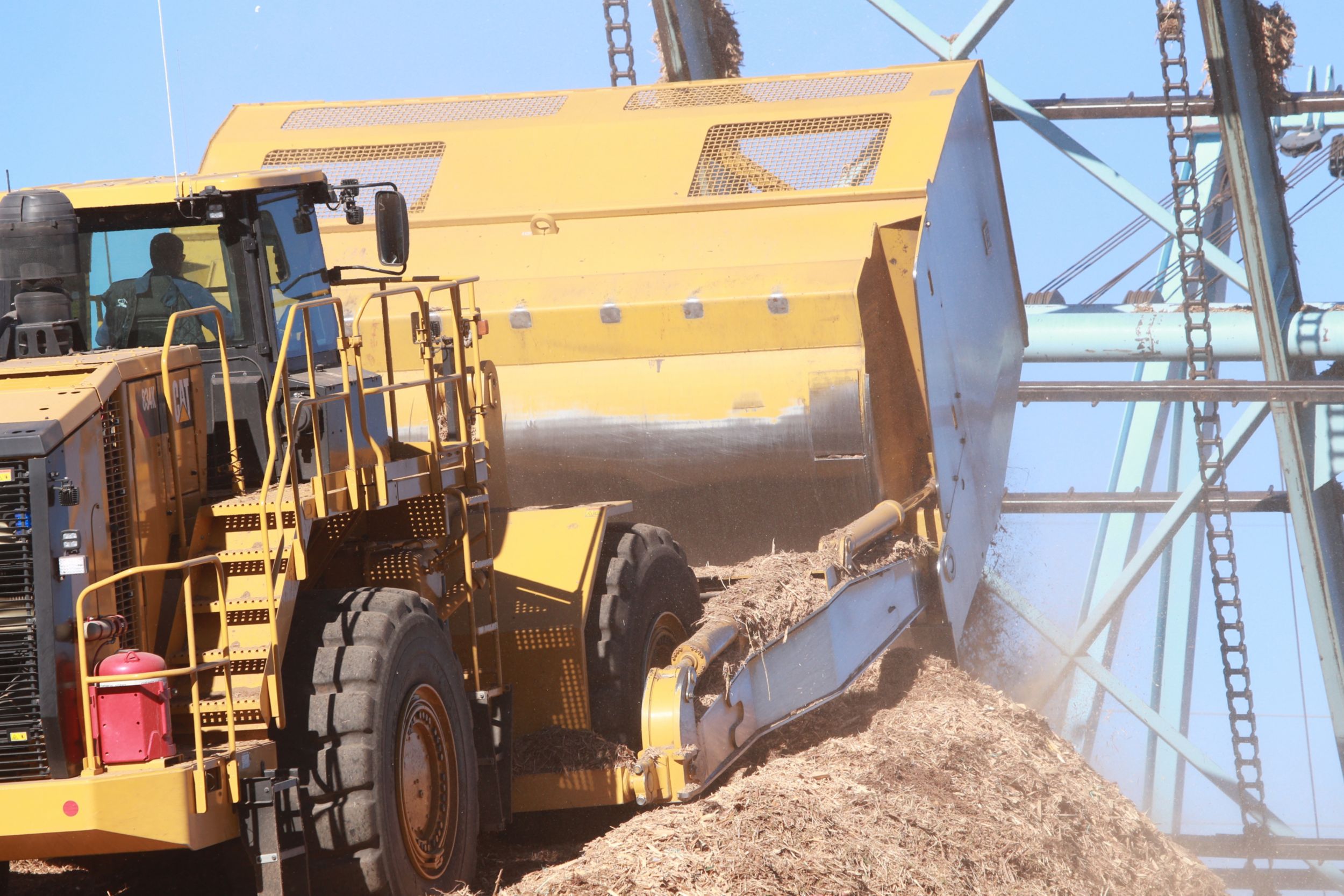

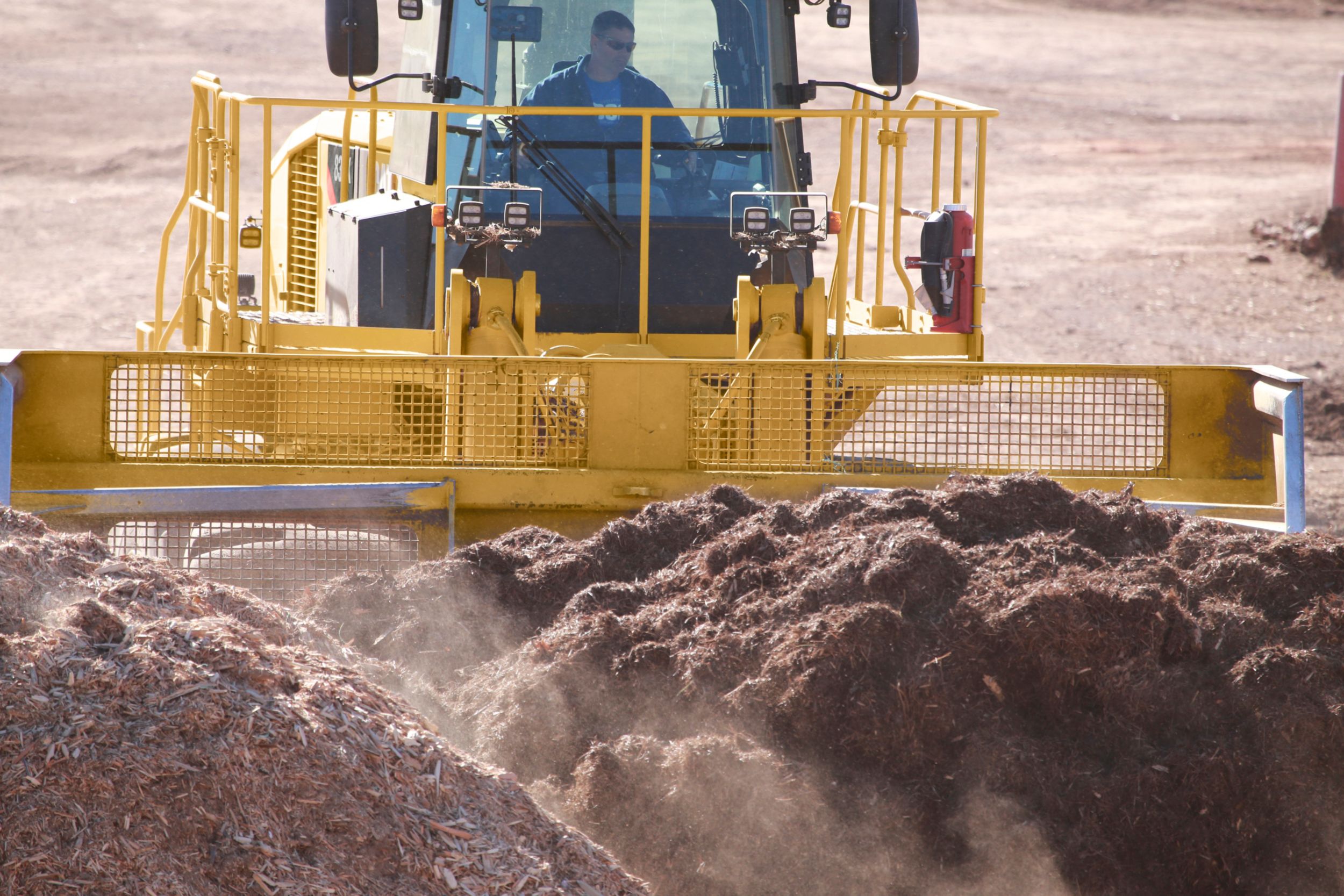

Cat wood chip and coal scoops have the unique capability of maximizing your production by both dozing and carrying a load with each pass. A purpose built hydraulic system is optimized for use with this work tool to maximize machine productivity and efficiency. Dual lift cylinders provide hydraulic lift capacity matched to the demands of the application. 834K Wheel Dozer Scoop

The fixed front axle and oscillating rear axle ensures four-wheel ground contact for optimum traction and stability. The front axle is rigidly mounted to the front loader frame, while the rear axle is allowed to oscillate. This configuration allows the operator's view of the scoop to remain constant as the rear axle oscillates enabling the operator to maintain a smooth and properly graded work area in any underfoot conditions.

Save on Fuel Costs

The 834K has several features to achieve greater fuel efficiency:

Positive Flow Control Hydraulics – Provides only the hydraulic flow required by the implement and steering systems for improved fuel efficiency and greater rimpull.
Engine – Advanced engine controls maximizes power and efficiency.
Engine Idle Shutdown – Automatic engine and electrical system shutdown conserves fuel.
Lock-up Torque Converter – Transfers more power to the ground and optimizes fuel efficiency in all applications.
Advanced Productivity Electronic Control Strategy (APECS) – All new APECS transmission controls provides greater momentum on grades and fuel savings by carrying that momentum through the shift points.

Machine configuration, operator technique, and job site layout can impact fuel consumption.

Machine Configuration – Select the correct work tool and tire type based on machine application. Ensure proper inflation pressures.
Idle – Set the parking brake to engage Engine Idle Management System.

Save on Service and Maintenance

Safe and convenient service with ground level or platform access and grouped service points.
Swing-out doors on both sides of the engine compartment provide easy access to important daily service checks.
Ecology drains for ease of service and prevention of spilling potential environmental contaminants.
Reduce downtime with VIMS system notifications so your operators and technicians can resolve any problems before failure.
Ground level access to transmission control valves.

Top-Tier Service and Support

A valued partner, your Cat dealer is available whenever you need them.

Preventive maintenance programs and guaranteed maintenance contracts.
Best-in-class parts availability.
Improve your efficiency with operator training.
Genuine Cat Remanufactured parts.

SPECIFICATIONS

Engine Model C18 Cat®
Net Power 370kW496hp
Bore 145mm5.7in
Stroke 183mm7.2in
Displacement 18.1l1105in³
Rated Speed 1,900/min
Emissions U.S. EPA Tier 4 Final/EU Stage IV, Tier 3 Equivalent, or Tier 2 Equivalent
Torque Rise 52%
Net - SAE J1349 370kW496hp
Peak Power Speed 1500/min
Peak Torque - 1,300 rpm 2836N·m2092ft·lbf
Gross - SAE J1349 419kW562hp
Direct Drive - Reverse 3 23.0km/h14.3mile/h
Forward - 3 20.3km/h12.6mile/h
Direct Drive - Reverse 1 7.2km/h4.5mile/h
Forward - 2 11.6km/h7.2mile/h
Direct Drive - Forward 2 12.4km/h7.7mile/h
Forward - 1 6.8km/h4.2mile/h
Direct Drive - Reverse 2 13.0km/h8.1mile/h
Reverse - 2 12.2km/h7.6mile/h
Direct Drive - Forward 3 22.1km/h13.7mile/h
Reverse - 1 6.8km/h4.2mile/h
Reverse - 3 21.4km/h13.3mile/h
Forward - 4 35.4km/h22.0mile/h
Direct Drive - Forward 1 Lock-up disabled
Direct Drive - Forward 4 38.5km/h23.9mile/h
Transmission Type Cat planetary power shift
Brakes ISO 3450: 2011
Front Fixed
Rear Trunnion
Oscillation Angle ±13°
Operating Weight 51290kg112838lb
Cooling System 120l31.7gal (US)
Crankcase 60l15.9gal (US)
Transmission 120l31.7gal (US)
Hydraulic System - Tank Only 140l37.0gal (US)
Differential - Final Drives - Rear 186l49.1gal (US)
Differential - Final Drives - Front 186l49.1gal (US)
Hydraulic System Factory Fill 240l63.4gal (US)
Diesel Exhaust Fluid Tank* 33l8.7gal (US)
Fuel Tank 793l209.5gal (US)
Coal Scoop Operating Weight 51103kg112428lb
Chip Scoop Operating Weight 51290kg112838lb
Operator Sound Level (ISO 6396) 72dB(A)72dB(A)
Machine Sound Level (ISO 6395) 109dB(A)109dB(A)
Operator Sound Level (ISO 6396) 73dB(A)73dB(A)
Machine Sound Level (ISO 6395) 111dB(A)111dB(A)
Height - Top of Exhaust Stack 4498mm14.8ft
Centerline of Front Axle to Hitch 2275mm7.5ft
Length - With Chip Scoop on Ground 11974mm39.3ft
Ground to Center of Front Axle 978mm3.2ft
Length - With Coal Scoop on Ground 11971mm39.3ft
Height - Top of Cab 4184mm13.7ft
Length - Front of Tire 8715mm28.4ft
Centerline of Rear Axle to Edge of Bumper 3187mm10.5ft
Height - Top of Air Cleaner 3895mm12.8ft
Height - Top of Hood 3334mm10.9ft
Ground Clearance 531mm1.7ft
Wheel Base 4550mm14.9ft
Coal Scoop Carry Capacity 22.9m³30.0yd³
Pilot Maximum Flow 52l/min13.7gal/min
Pilot Relief Valve Setting 4000kPa580psi
Maximum Flow at 1,900 rpm 582l/min153gal/min
Lift/Tilt System Variable displacement piston
Cylinders, Double Acting - Left and Right Dump, Bore and Stroke 127 mm × 838 mm (5.0 in × 33.0 in)
Lift/Tilt System - Circuit Pilot operated LS valve with EH
Relief Valve Setting - Lift/Tilt 29000kPa4206psi
Cylinders, Double Acting - Lift, Bore and Stroke 170.0 mm × 1107 mm (6.7 in × 43.6 in)
Pilot System Variable displacement piston
Maximum Flow 250l/min65.8gal/min
Total Steering Angle 86°
Steering Cycle Times - Low Idle 5.7s5.7s
Steering Cycle Times - High Idle 3.1s3.1s
Relief Valve Setting - Steering 24100kPa3495psi
Steering System - Pump Piston, variable displacement
Steering System - Circuit Pilot, load sensing
Note (1) All non-road Tier 4 Final/Stage IV Technology diesel engines are required to use:
– Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm (mg/kg) sulfur or less. Biodiesel blends up to B20 are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD and when the biodiesel feedstock meets ASTM D7467 specifications.
– Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required.
Note (1) The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008.
– The measurement was conducted at 70 percent of the maximum engine cooling fan speed.

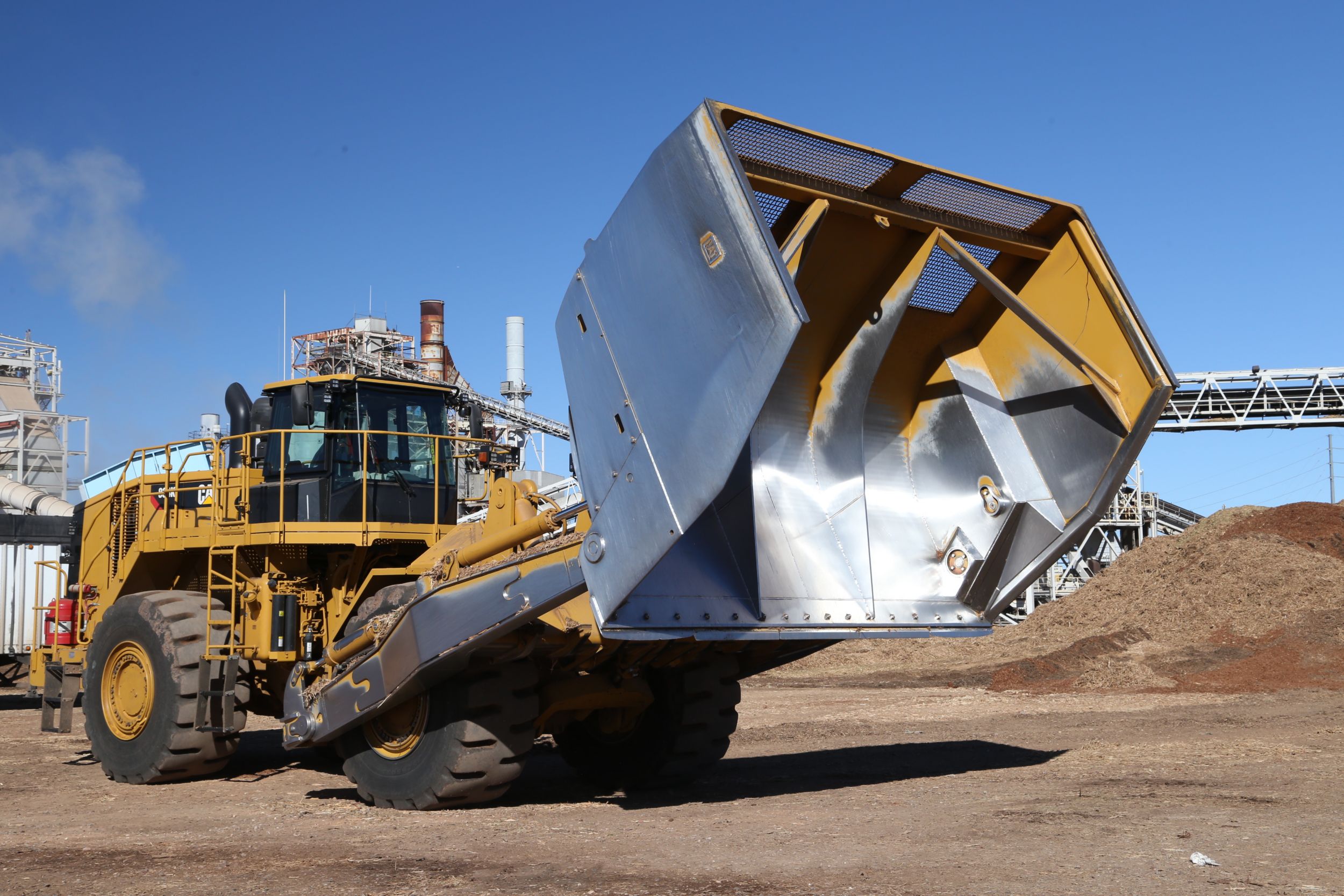

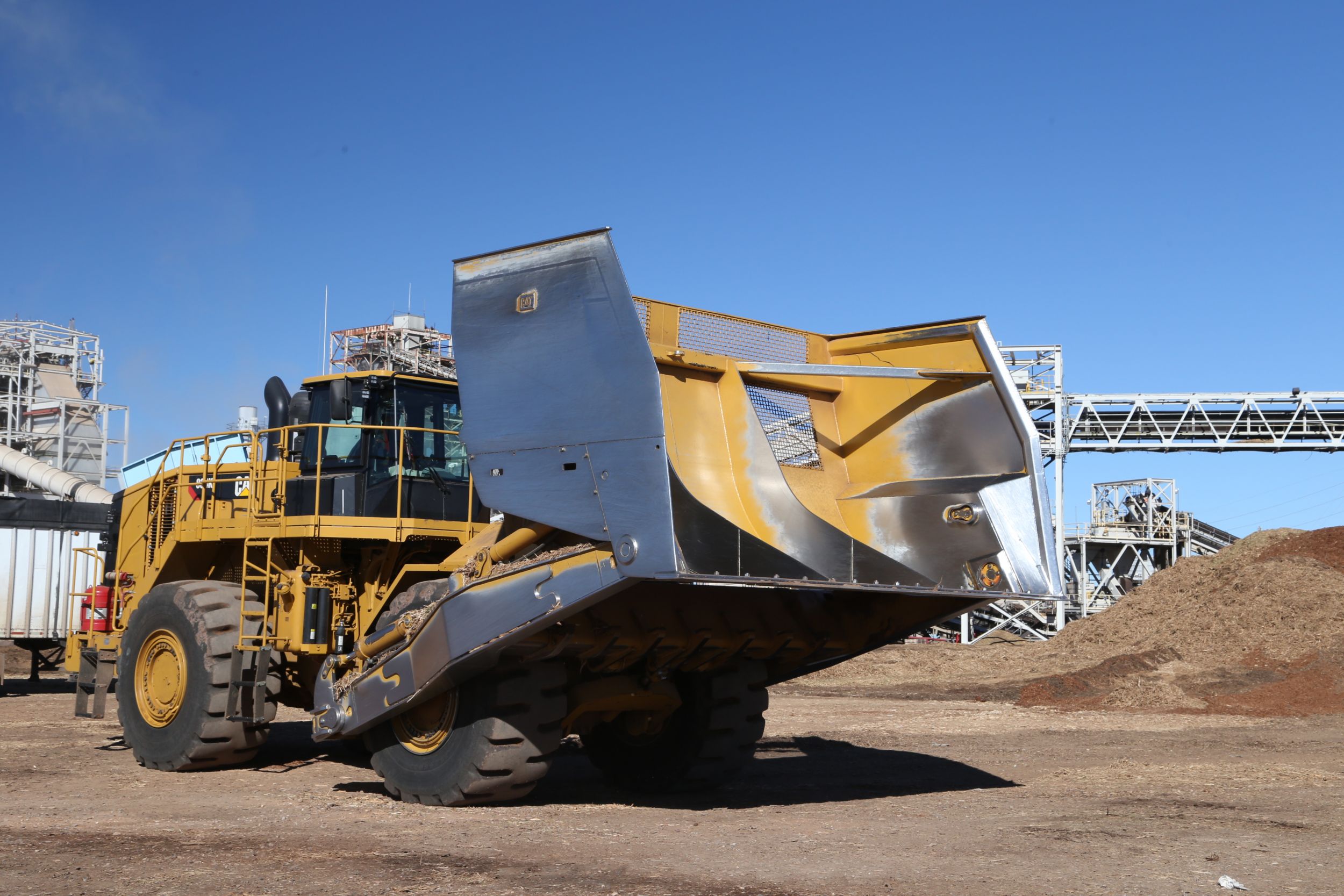

Type Large capacity scoops for both wood chip and coal applications. A mesh screen integrated into the back of the scoop maintains visibility to the cutting edge. The chip scoop version has extra screens at the top due to higher capacity.
Components Both scoops come with dual lift cylinders for increased lift capacity. Integrated stabilizer system makes sure that the scoop stays stable and centralized on the machine. Scoop tilt function is standard and provides ±15 degrees of tilt to maintain grade conditions and keep your operation safe.
Coal Scoop Doze Capacity 45.9m³60.0yd³
Note (1) The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. – The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
Note Travel speeds based on 35/65-R33 tire.
Note (1) The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. – The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
Note (2) Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Machine Sound Level (ISO 6395) 112dB(A)112dB(A)
Machine Sound Level (ISO 6395) 109dB(A)109dB(A)
Operator Sound Level (ISO 6396) 81dB(A)81dB(A)
Height - Edge of Dumped Scoop 1520mm5.0ft
Height - Edge of Retracted Scoop 2250mm7.4ft
Note (2) Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Operator Sound Level (ISO 6396) 81dB(A)81dB(A)
Note (3) The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008.
– The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
Cylinders, Double Acting - Tilt, Bore and Stroke 152.4 mm × 953 mm (6.0 in × 37.5 in)
Note (1) The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. – The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
Note (2) *Only applicable to Tier 4 Final/Stage IV equipped machines.
Chip Scoop Carry Capacity 26.8m³35.0yd³
Note (3) The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. – The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
Chip Scoop Doze Capacity 53.5m³70.0yd³
Note (2) Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Note (3) The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. – The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
Dump Angle at Full Lift Height 64 deg
Note (3) The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. – The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.
Note (2) Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
