G3516E
KEY SPECS
- Continuous Rating 1603 ekW
- Fuel Type Natural Gas
- Maximum Electrical Efficiency 41.70%
OVERVIEW
FEATURES AT A GLANCE
Emissions
- Meets most worldwide emissions requirements down to 0.5 g/bhp-hr NOx level without aftertreatment
One Safe Source
- Wide range of bolt-on system expansion attachments
- Factory designed and tested
- Flexible packaging options for easy and cost effective installation
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

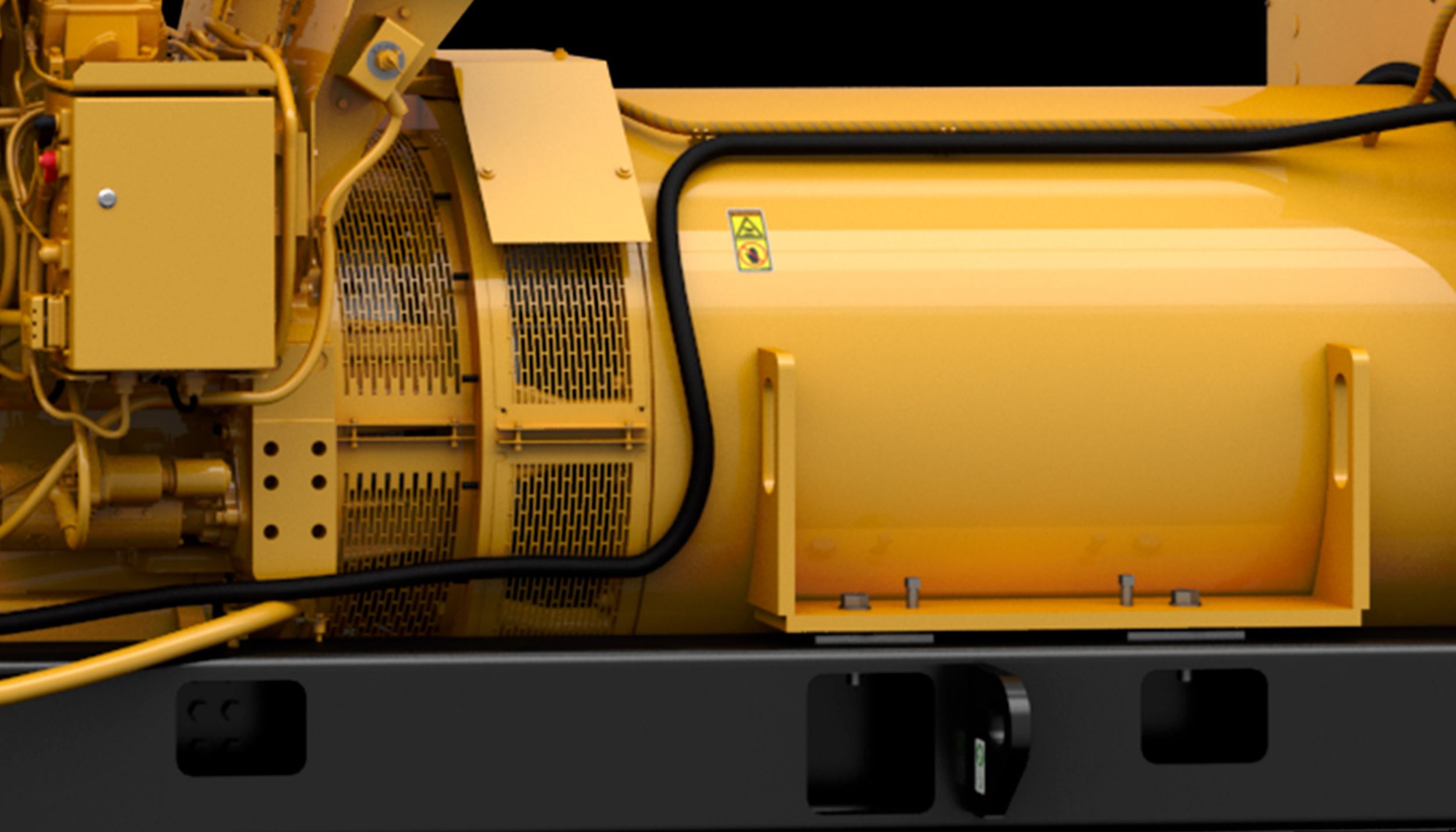

SR4B Alternator
- Designed to match performance and output characteristics of Caterpillar gas engines
- Industry leading mechanical and electrical design
- High efficiency
EMCP II+ Control System
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
SPECIFICATIONS
- Continuous Rating 1603 ekW
- Fuel Type Natural Gas
- Maximum Electrical Efficiency 41.70%
- Maximum Standby Rating 1603
- Frequency 50 Hz
- RPM 1500 rpm
- Engine Model G3516E
- Displacement 69l
- Aspiration TA
- Bore 170mm
- Stroke 190mm
- Length 5523mm
- Width 1828mm
- Height 2340mm
- Dry Weight - Genset 14161kg
PRODUCT BROCHURES AND MORE ARE READY TO DOWNLOAD!
Caterpillar product brochures and other informational documents are available for your growing business.
